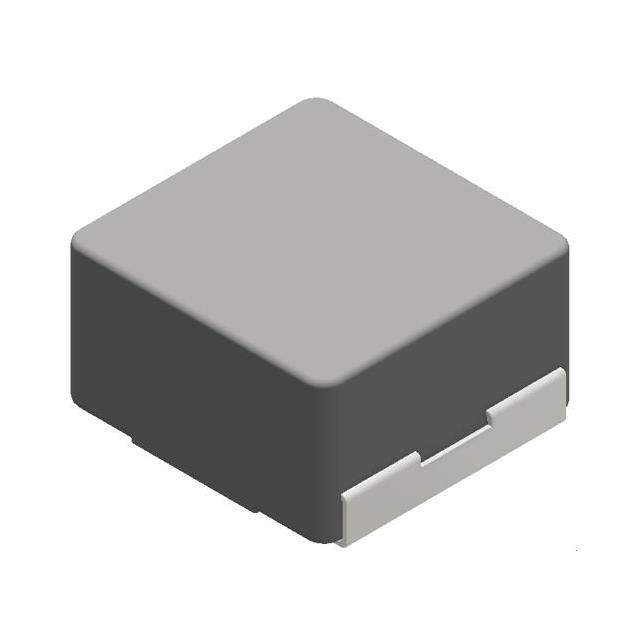

TMPA 2313SP-220MN-D

Name: TMPA 2313SP-220MN-D
Brand: TAI-TECH Advanced Electronics
SKU: 1383668
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TMPA 2313SP-220MN-D
Manufacturer	TAI-TECH Advanced Electronics
Catalog	Fixed Inductors
Description	22 UH SHIELDED MOLDED INDUCTOR S / 22 µH Shielded Molded Inductor 18 A 11mOhm Max Nonstandard
Datasheet	TMPA 2313SP-220MN-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	TAI-TECH Advanced Electronics
Series	TMPA2313SP
Package	Tape & Reel
Type	Molded
Material - Core	-
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	18 A
Current - Saturation (Isat)	14A
Shielding	Shielded
DC Resistance (DCR)	11mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.925" L x 0.866" W (23.50mm x 22.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	80 pcs
Win Source Part Number	1383668-TMPA 2313SP-220MN-D
Ultra Librarian 3D Model	Ultra Librarian TMPA 2313SP-220MN-D CAD Model

Alternative Products

Description

The TMPA2313SP-220MN-D is a molded inductor from TAI-TECH Advanced Electronics.

Type: Shielded Inductor
Size: 0.925" L x 0.866" W (23.50mm x 22.00mm)
Inductance: 22 µH
Tolerance: ±20%
Seated Height: 0.512" (13.00mm)
DC Resistance (DCR): 11mOhm
Mounting Type: Surface Mount
Package/Case: Nonstandard
Operating Temperature: -40°C to 125°C
Current Rating: 18 A
REACH: Compliant
ECCN: EAR99
