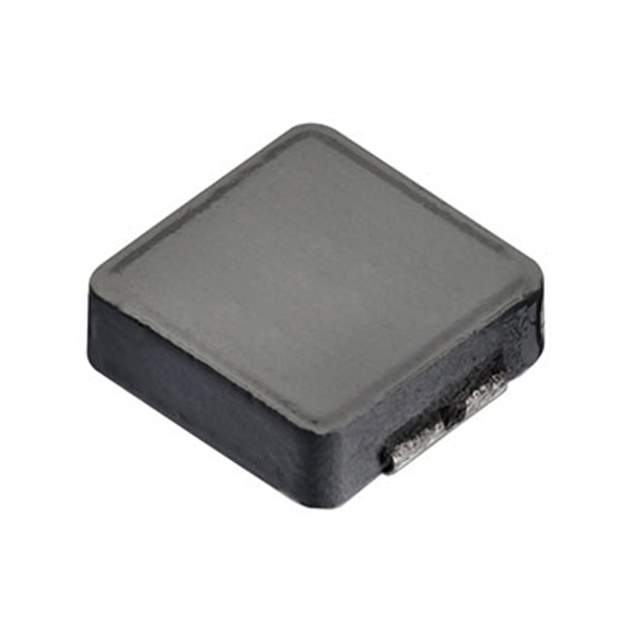

Same model may have multiple batches, images only for reference.

74437356022

Name: 74437356022
Brand: Wurth Electronics Inc
SKU: 857407
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74437356022
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 8.5A 20.3MOHM SM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LHMI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Iron Powder
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	8.5 A
Current - Saturation (Isat)	15.5A
Shielding	Shielded
DC Resistance (DCR)	20.3mOhm Max
Frequency - Self Resonant	24MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	8030
Size / Dimension	0.362" L x 0.335" W (9.20mm x 8.50mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857407-74437356022
Ultra Librarian 3D Model	Ultra Librarian 74437356022 CAD Model

Alternative Products

Description

The WE-LHMI series is a molded inductor designed for use in various electronic applications. Wurth Electronics Inc is the manufacturer.

Size: 0.362" L x 0.335" W (9.20mm x 8.50mm)
Inductance: 2.2 µH
Maximum Seated Height: 0.118" (3.00mm)
DC Resistance (DCR): 20.3mOhm
Mounting Type: Surface Mount
Temperature Range: -40°C to 125°C
Current Rating: 8.5A
Current Saturation (Isat): 15.5A
Product Status: Active
