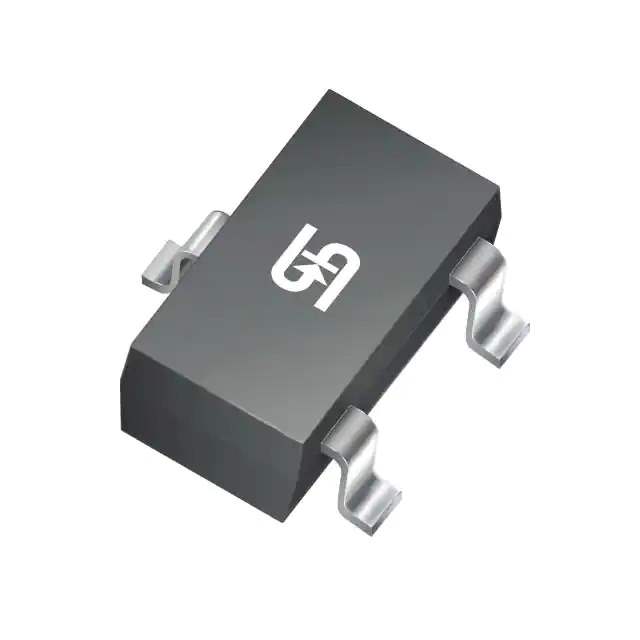

The 569427-BC850CW is an NPN bipolar transistor in the SC-70, SOT-323 package.

• Transistor Type: NPN
• Package / Case: SC-70, SOT-323
• Power - Max: 200 mW
• Voltage - Collector Emitter Breakdown (Max): 45 V
• Current - Collector (Ic) (Max): 100 mA
• Vce Saturation (Max) @ Ib, Ic: 600 mV @ 5 mA, 100 mA
• Current - Collector Cutoff (Max): 15 nA
• DC Current Gain (hFE) (Min) @ Ic, Vce: 420 @ 2 mA, 5 V
• Mounting Type: Surface Mount
• Operating Temperature: -55°C to 150°C
• Manufacturer: Taiwan Semiconductor
• Product Status: Active
