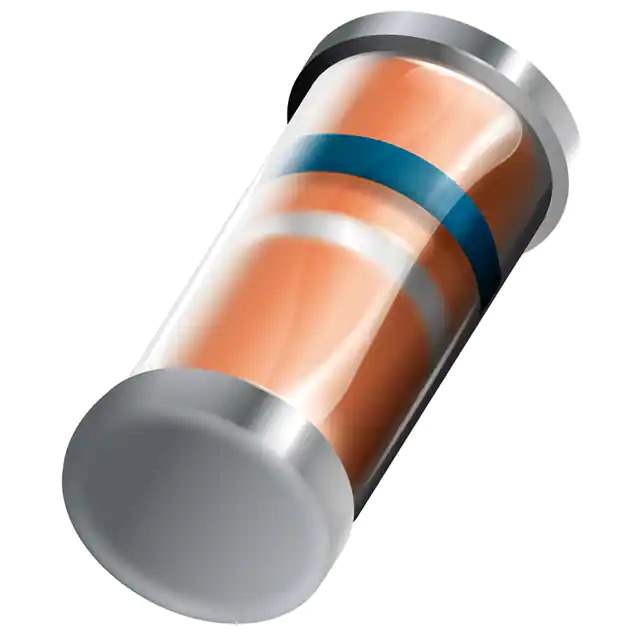

BZV55B20 Real Image
Same model may have multiple batches, images only for reference.

BZV55B20

Part No BZV55B20
Manufacturer Taiwan Semiconductor
Catalog Diodes - Zener - Single
Description MMELF, 500MW, 2%, SMALL SIGNAL Z
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Voltage - Zener (Nom) (Vz) 20 V
Tolerance ±2%
Power - Max 500 mW
Impedance (Max) (Zzt) 55 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 15 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Temperature Range - Operating -65°C ~ 175°C (TJ)
Mounting Type Surface Mount
Package / Case DO-213AC, MINI-MELF, SOD-80
Supplier Device Package Mini MELF
Base Product Number BZV55B
Standard Package 10,000 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 574790-BZV55B20
Ultra Librarian 3D Model Ultra Librarian BZV55B20 CAD Model

Description

The BZV55B20 is a surface mount Zener diode manufactured by Taiwan Semiconductor.

  • Series: BZV55B
  • Voltage Rating: 20V
  • Power Rating: 500mW
  • Forward Voltage: 1V @ 100mA
  • Reverse Leakage Current: 100nA @ 15V
  • Tolerance: ±2%
  • Impedance: 55 Ohms
  • Mounting Type: Surface Mount
  • Package: DO-213AC, Mini-MELF, SOD-80
  • Operating Temperature Range: -65°C to 175°C
  • Common Applications: Voltage Regulation, Overvoltage Protection, and Signal Clamping Circuits
