Same model may have multiple batches, images only for reference.

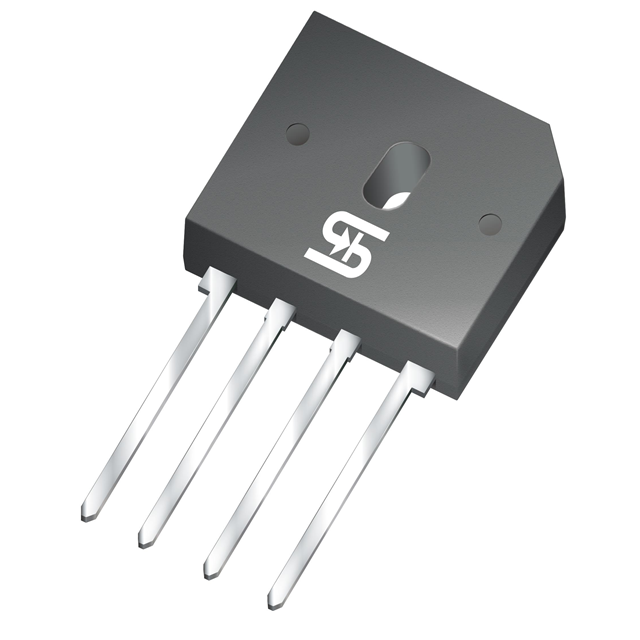

GBU1506 Real Image
Same model may have multiple batches, images only for reference.

GBU1506

Part No GBU1506
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description 15A, 800V, STANDARD BRIDGE RECTI
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 14 Weeks
Features Bridge Rectifier Single Phase Standard 800 V Through Hole GBU
Manufacturer Taiwan Semiconductor
Package Tube
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Through Hole
Package 4-SIP, GBU
Case / Package GBU
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872612-GBU1506
Ultra Librarian 3D Model Ultra Librarian GBU1506 CAD Model

Description

This bridge rectifier with the Win Source Part Number 872612-GBU1506 is a single-phase standard 800V through-hole GBU rectifier.

  • Rectifier Type: Single-Phase Standard
  • Voltage: 800V
  • Mounting Type: Through-Hole
  • Package: 4-SIP, GBU
  • ECCN: EAR99
  • Supply and Demand Status: Limited
  • Mounting: Through Hole
  • Quantity per Package: 1000
  • Estimated Production Lead Time: 14 weeks
  • REACH: Affected
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
