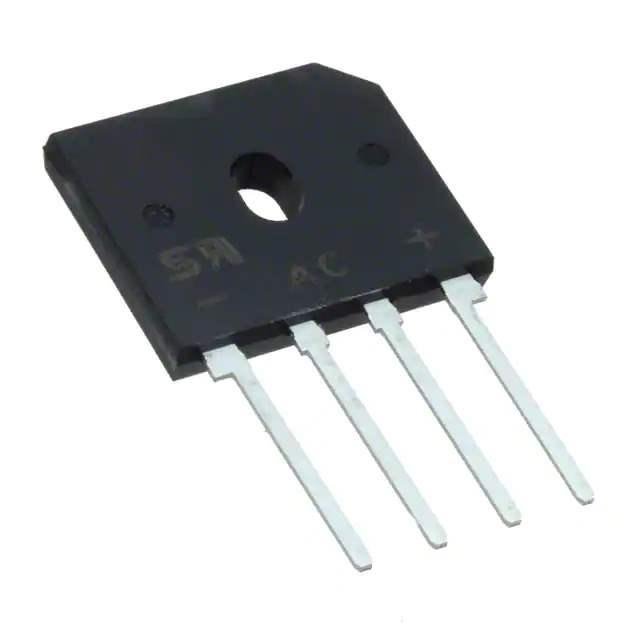

Same model may have multiple batches, images only for reference.

GBU15L06

Name: GBU15L06
Brand: Taiwan Semiconductor
SKU: 594330
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	GBU15L06
Manufacturer	Taiwan Semiconductor
Catalog	Bridge Rectifiers
Description	BRIDGE RECT 1PHASE 800V 15A GBU
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr	Taiwan Semiconductor
Package	Tube
Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	800 V
Current - Average Rectified (Io)	15 A
Voltage - Forward (Vf) (Max) @ If	960 mV @ 7.5 A
Current - Reverse Leakage @ Vr	5 µA @ 800 V
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-SIP, GBU
Supplier Device Package	GBU
Base Product Number	GBU15
Standard Package	20 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	594330-GBU15L06
Ultra Librarian 3D Model	Ultra Librarian GBU15L06 CAD Model

Alternative Products

Description

The 594330-GBU15L06 is a single-phase bridge rectifier diode designed for high current applications.

Manufacturer: Taiwan Semiconductor
Average Rectified Current: 15 A
Maximum Forward Voltage: 960 mV @ 7.5 A
Maximum Reverse Voltage: 800 V
Reverse Leakage Current: 5 µA @ 800 V
Mounting Type: Through-Hole
Package: 4-SIP, GBU
Operating Temperature Range: -55°C to 150°C
Series: GBU
