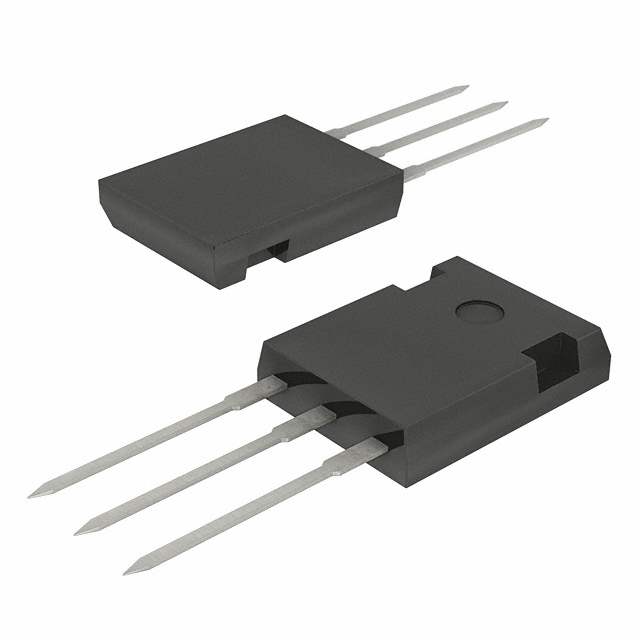

HER3006PT Real Image
Same model may have multiple batches, images only for reference.

HER3006PT

Part No HER3006PT
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 600V 30A TO247AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tube
Product Status Discontinued
Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 80 ns
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD (TO-3P)
Base Product Number HER3006
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 597323-HER3006PT
Ultra Librarian 3D Model Ultra Librarian HER3006PT CAD Model

Description

The HER3006PT is a diode array in a through-hole TO-247-3 package.

  • Voltage Rating: 600 V
  • Forward Voltage: 1.7 V @ 15 A
  • Reverse Recovery Time: 80 ns
  • Reverse Leakage Current: 10 μA @ 600 V
  • Configuration: 1 pair of common cathode diodes
  • Average Rectified Current per Diode: 30A
  • Temperature Range: -55°C to 150°C
  • Manufacturer: Taiwan Semiconductor
