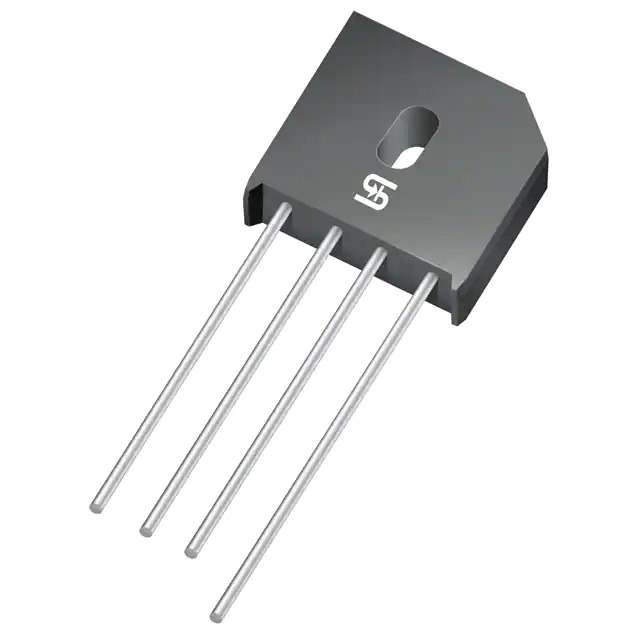

Same model may have multiple batches, images only for reference.

KBU807G

Name: KBU807G
Brand: Taiwan Semiconductor
SKU: 168886
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	KBU807G
Manufacturer	Taiwan Semiconductor
Catalog	Bridge Rectifiers
Description	BRIDGE RECT 1PHASE 1KV 8A KBU
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr	Taiwan Semiconductor
Package	Tray
Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1 kV
Current - Average Rectified (Io)	8 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 8 A
Current - Reverse Leakage @ Vr	5 µA @ 1000 V
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-SIP, KBU
Supplier Device Package	KBU
Base Product Number	KBU807
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	168886-KBU807G
Ultra Librarian 3D Model	Ultra Librarian KBU807G CAD Model

Alternative Products

Description

The 168886-KBU807G is a single phase bridge rectifier diode from Taiwan Semiconductor.

Designed for: use in discrete semiconductor products
Package: tray
Average Rectified Current: 8 A
Forward Voltage: 1.1 V @ 8 A
Reverse Leakage Current: 5 μA @ 1000 V
Peak Reverse Voltage: 1 kV
Mounting: through hole
Package: 4-SIP, KBU
Operating Temperature Range: -55°C to 150°C
Product Status: active
REACH Regulations: unaffected
