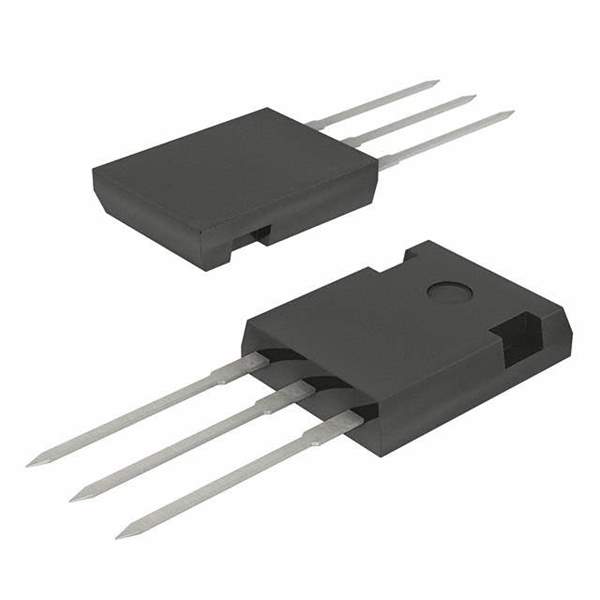

MBR6045PT Real Image MBR6045PT Real Image
Same model may have multiple batches, images only for reference.
MBR6045PT Real Image MBR6045PT Real Image
MBR6045PT Real Image MBR6045PT Real Image
Same model may have multiple batches, images only for reference.

MBR6045PT

Part No MBR6045PT
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 45V TO247AD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) (per Diode) 60A
Voltage - Forward (Vf) (Max) @ If 820 mV @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 45 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AD (TO-3P)
Base Product Number MBR6045
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 220823-MBR6045PT
Ultra Librarian 3D Model Ultra Librarian MBR6045PT CAD Model

Description

The MBR6045PT is a diode array designed for rectification purposes.

  • Maximum Reverse Voltage Rating: 45V
  • Maximum Forward Voltage Drop: 820mV @ 60A
  • Diode Array: 1 pair common cathode
  • Mounting: through-hole
  • Package: TO-247-3
  • Manufacturer: Taiwan Semiconductor
  • Current Rating: 60A
  • Operating Temperature Range: -55°C to 150°C
  • REACH Regulations: unaffected
  • Product Status: active
  • Recovery Speed: fast
