Same model may have multiple batches, images only for reference.

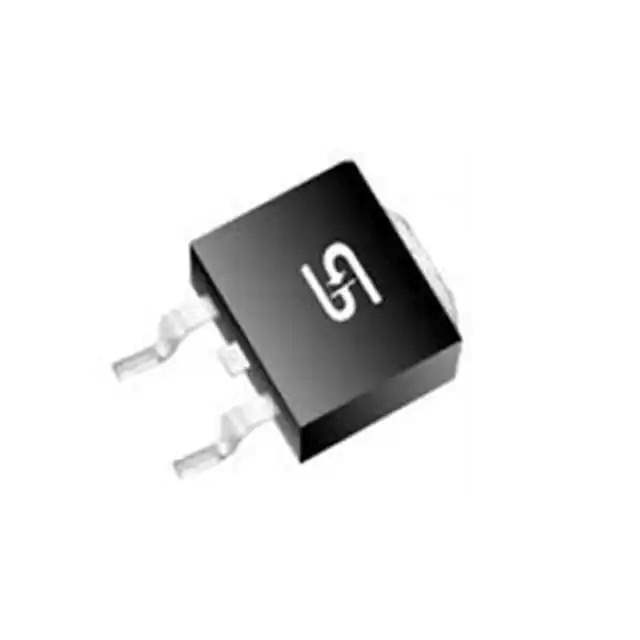

MBRS20H100CT Real Image
Same model may have multiple batches, images only for reference.

MBRS20H100CT

Part No MBRS20H100CT
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 100V 20A TO263AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5 µA @ 100 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D2PAK)
Base Product Number MBRS20
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 633812-MBRS20H100CT
Ultra Librarian 3D Model Ultra Librarian MBRS20H100CT CAD Model

Description

The MBRS20H100CT is a fast recovery Schottky diode array designed for rectification in electronic circuits.

  • Maximum DC Reverse Voltage: 100V
  • Forward Voltage: 950mV @ 20A
  • Current Rating: 20A
  • Diode Configuration: 1 pair common cathode
  • Mounting: Surface mountable
  • Package: TO-263AB
  • Product Status: Active
  • Manufacturer: Taiwan Semiconductor
  • Standard Package: 800 pcs
