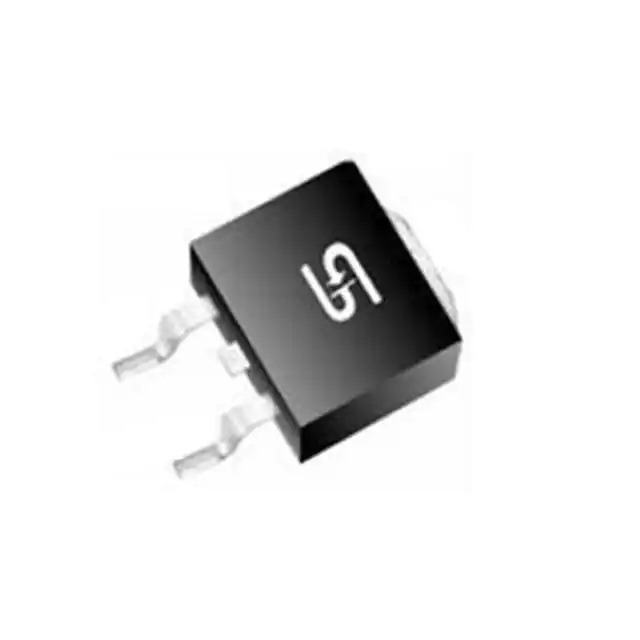

Same model may have multiple batches, images only for reference.
SFAS802GHMNG Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

SFAS802GHMNG

Part No SFAS802GHMNG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 8A TO263AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 8 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 10 µA @ 100 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D²PAK)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SFAS802
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366864-SFAS802GHMNG
Ultra Librarian 3D Model Ultra Librarian SFAS802GHMNG CAD Model

Description

The SFAS802GHMNG is a fast recovery rectifier diode manufactured by Taiwan Semiconductor Corporation. The Taiwan Semiconductor Corporation SFAS802GHMNG is designed for a wide range of applications, including rectification and power conversion.

  • Voltage - Reverse (Vr) (Max): 100V
  • Current - Average Rectified (Io): 8A
  • Voltage - Forward (Vf) (Max) @ If: 950mV @ 8A
  • Recovery Time (trr): < 500ns
  • Mounting Type: Surface Mount
  • Package / Case: TO-263AB (D²PAK)
