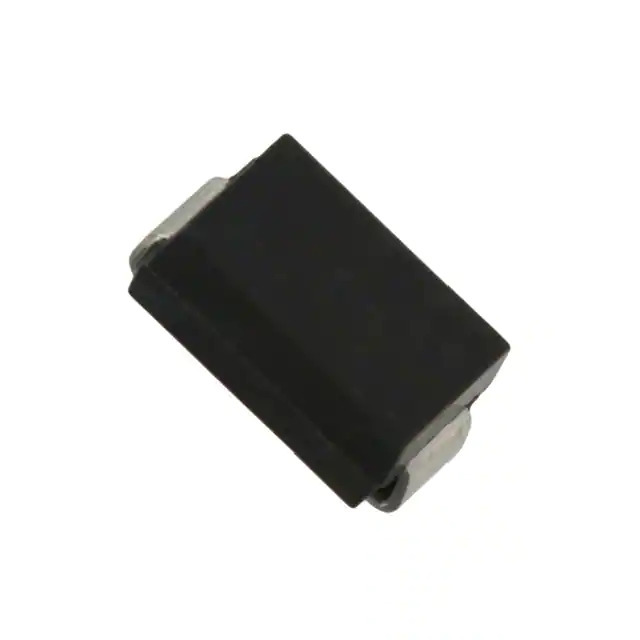

SMBJ40CAH Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

SMBJ40CAH

Part No SMBJ40CAH
Manufacturer Taiwan Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 40VWM 64.5VC DO214AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101, SMBJH
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 40V
Voltage - Breakdown (Min) 44.4V
Voltage - Clamping (Max) @ Ipp 64.5V
Current - Peak Pulse (10/1000µs) 9.7A
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Base Product Number SMBJ40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1379911-SMBJ40CAH
Ultra Librarian 3D Model Ultra Librarian SMBJ40CAH CAD Model

Description

The SMBJ40CAH is a TVS diode from Taiwan Semiconductor Corporation.

  • Type: Bidirectional Zener
  • Application: Automotive
  • Reverse Standoff Voltage: 40V
  • Breakdown Voltage: 44.4V
  • Clamping Voltage: 64.5V @ peak pulse current
  • Peak Pulse Current: 9.7A
  • Peak Power Dissipation: 600W
  • Package: DO-214AA, SMB
  • Operating Temperature: -55°C to 150°C
