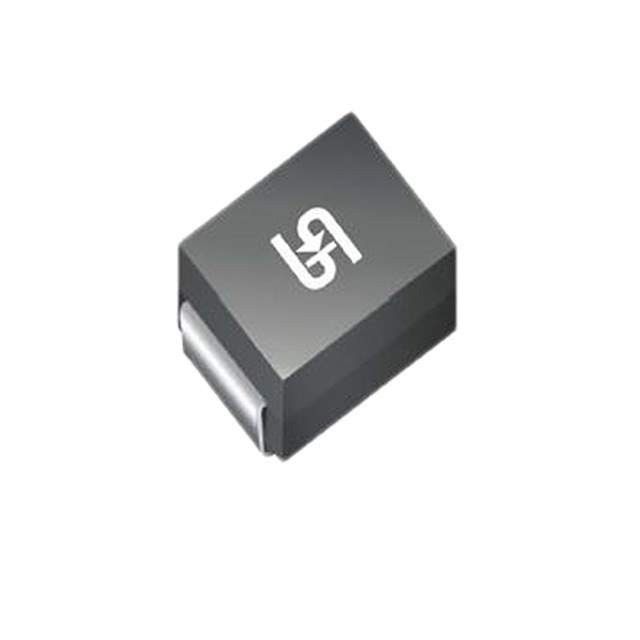

SMCJ90AHR7G Real Image
Same model may have multiple batches, images only for reference.

SMCJ90AHR7G

Part No SMCJ90AHR7G
Manufacturer Taiwan Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 90VWM 146VC DO214AB  /  146V Clamp 10.7A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Taiwan Semiconductor Corporation
Series Automotive, AEC-Q101, SMCJ
Package Tape & Reel (TR)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 90V
Voltage - Breakdown (Min) 100V
Voltage - Clamping (Max) @ Ipp 146V
Current - Peak Pulse (10/1000µs) 10.7A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Base Product Number SMCJ90
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 850
Win Source Part Number 1094310-SMCJ90AHR7G
Ultra Librarian 3D Model Ultra Librarian SMCJ90AHR7G CAD Model

Description

The Taiwan Semiconductor SMCJ90AHR7G is a Zener type TVS diode.

  • Type: Zener TVS diode
  • Application: Automotive
  • Voltage Reverse Standoff: 90V
  • Voltage Breakdown: 100V
  • Voltage Clamping: 146V @ Ipp
  • Power Peak Pulse: 1500W or 1.5kW
  • Current Peak Pulse: 10.7A
  • Mounting: SMD (SMT)
  • Package/Case: DO-214AB, SMC
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Alternative For: SMCJ90
