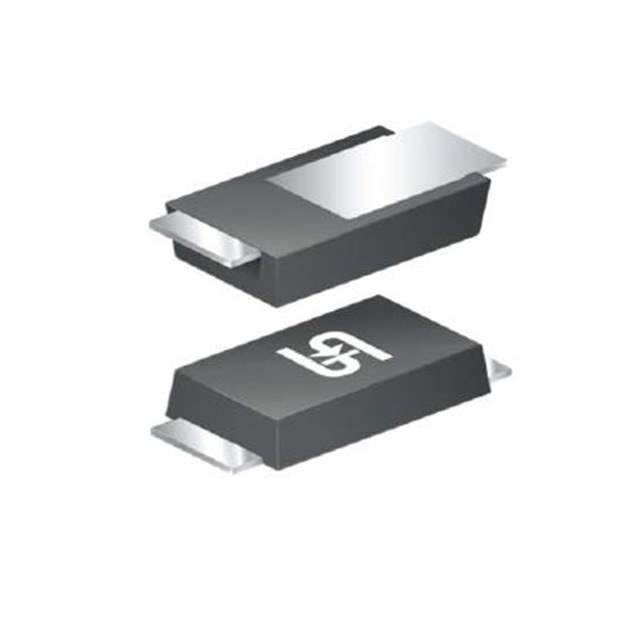

SS12LSHRVG Real Image
Same model may have multiple batches, images only for reference.

SS12LSHRVG

Part No SS12LSHRVG
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE, SCHOTTKY, STANDARD, 1A, 2
Datasheet
SS12LSHRVG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 450mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 400μA @ 20V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-123HE
Operating Temperature - Junction -55°C to 125°C
Win Source Part Number 1102033-SS12LSHRVG
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SS12LSHRVG CAD Model

Description

The SS12LSHRVG is a Schottky Diode from Taiwan Semiconductor.

  • Mounting: surface-mounting
  • Package: SOD-123HE
  • Voltage - DC Reverse (Vr): 20V
  • Current - Average Rectified (Io): 1A
  • Forward Voltage (Vf): 450mV @ 1A
  • Reverse Leakage Current @ Vr: 400μA @ 20V
  • Capacitance @ Vr, F: 80pF @ 4V and 1MHz
  • Operating Temperature Range: -55°C to 125°C
  • Status: active
  • Speed: fast recovery = 200mA (Io)
