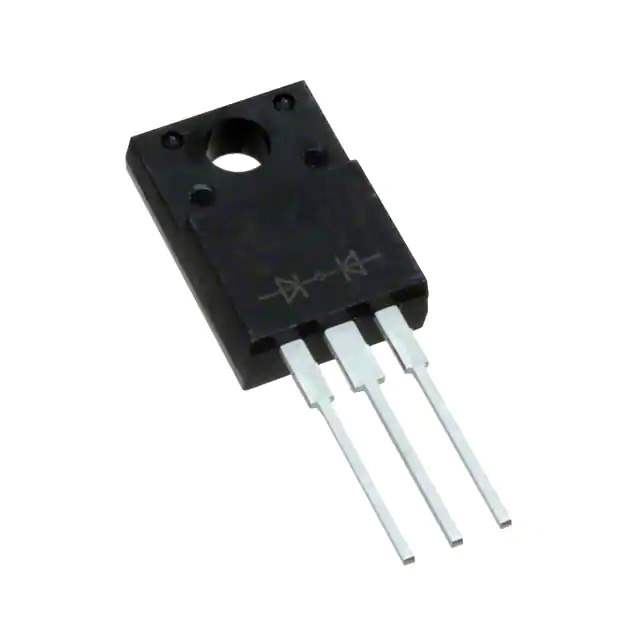

TSF20L100C Real Image
Same model may have multiple batches, images only for reference.

TSF20L100C

Part No TSF20L100C
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTT 100V ITO220AB
Datasheet
TSF20L100C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Taiwan Semiconductor
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 860 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 100 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3 Full Pack, Isolated Tab
Supplier Device Package ITO-220AB
Base Product Number TSF20
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 692009-TSF20L100C
Ultra Librarian 3D Model Ultra Librarian TSF20L100C CAD Model

Description

The 692009-TSF20L100C is a diode array with a fast recovery time of less than 500ns and a maximum reverse voltage of 100V.

  • Recovery Time: Less than 500ns
  • Maximum Reverse Voltage: 100V
  • Forward Voltage: 860mV @ 10A
  • Reverse Leakage Current: 100μA @ 100V
  • Configuration: 1 Pair Common Cathode
  • Average Rectified Current: 10A (per diode)
  • Mounting: Through Hole
  • Package: TO-220-3 Full Pack, Isolated Tab
  • Supplier Device Package: ITO-220AB
  • Operating Temperature: -55°C to 150°C
  • Product Status: Active
  • Manufacturer: Taiwan Semiconductor
