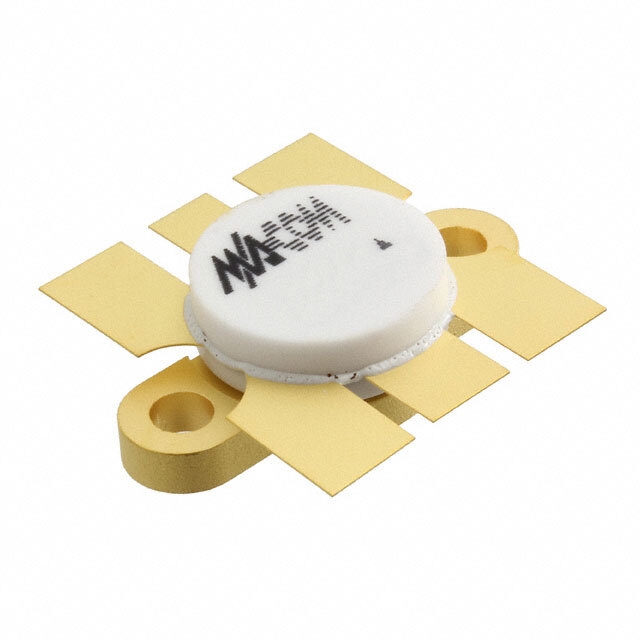

MRF316
Same model may have multiple batches, images only for reference.

MRF316

Part No MRF316
Manufacturer M/A-Com Technology Solutions
Catalog RF Transistors (BJT)
Description TRANS RF NPN 35V 9A 316-01 / RF Transistor NPN 35V 9A 80W Chassis Mount 316-01, STYLE 1
Datasheet
MRF316 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Bipolar RF Transistors
Mfr M/A-Com Technology Solutions
Package Tray
Product Status Active
Transistor Type NPN
Voltage - Collector Emitter Breakdown (Max) 35V
Gain 13dB
Power - Max 80W
DC Current Gain (hFE) (Min) @ Ic, Vce 10 @ 4A, 5V
Current - Collector (Ic) (Max) 9A
Mounting Type Chassis Mount
Package / Case 316-01
Supplier Device Package 316-01, STYLE 1
Standard Package 20 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 928064-MRF316
Ultra Librarian 3D Model Ultra Librarian MRF316 CAD Model

Description

The 928064-MRF316 is a bipolar RF transistor from M/A-Com Technology Solutions.

  • Category: discrete semiconductor products
  • Product Type: transistors - bipolar (BJT) - bipolar RF transistors
  • Package: tray
  • Standard Package Quantity: 20 pieces
  • Maximum Power Rating: 80W
  • Collector-Emitter Breakdown Voltage: 35V
  • Maximum Collector Current: 9A
  • Gain: 13dB
  • Transistor Type: NPN
  • DC Current Gain (hFE): 10 @ 4A and 5V
  • Mounting Type: chassis mount
  • Package/Case: 316-01
  • Supplier Device Package: 316-01, STYLE 1
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8541.29.0095
