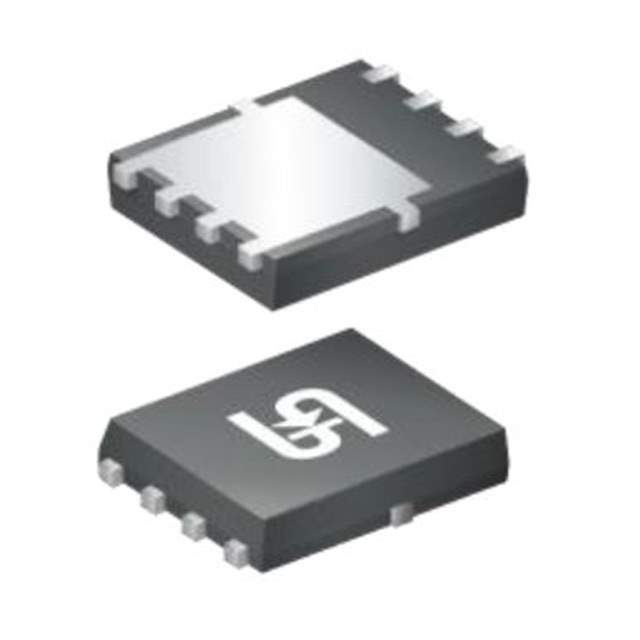

TSM033NB04CR RLG

Name: TSM033NB04CR RLG
Brand: Taiwan Semiconductor
SKU: 1383736
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TSM033NB04CR RLG
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 40V 21A/121A 8PDFN / N-Channel 40 V 21A (Ta), 121A (Tc) 3.1W (Ta), 107W (Tc) Surface Mount 8-PDFN (5x6)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr	Taiwan Semiconductor
Series	-
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	21A (Ta), 121A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.3mOhm @ 21A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	77 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5022 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 107W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PDFN (5x6)
Package / Case	8-PowerTDFN
Base Product Number	TSM033
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Standard Package	2,500 pcs
Win Source Part Number	1383736-TSM033NB04CR RLG
Ultra Librarian 3D Model	Ultra Librarian TSM033NB04CR RLG CAD Model

Alternative Products

Description

The 1383736-TSM033NB04CR RLG is a MOSFET transistor from Taiwan Semiconductor.

Channel Type: N-Channel FET
Vdss: 40 V
Id: 21A @ 25°C (Ta) and 121A @ 25°C (Tc)
Rds On: 3.3mOhm @ 21A and 10V Vgs
Vgs(th): 4V @ 250µA Id
Power Dissipation: 3.1W @ 25°C (Ta) and 107W @ 25°C (Tc)
Mounting Type: Surface Mount
Package: 8-PowerTDFN
Supplier Device Package: 8-PDFN (5x6)
Qg: 77nC @ 10V Vgs
Ciss: 5022pF @ 20V Vds
Operating Temperature: -55°C to 175°C
REACH: Unaffected
MSL: 1 (Unlimited)
