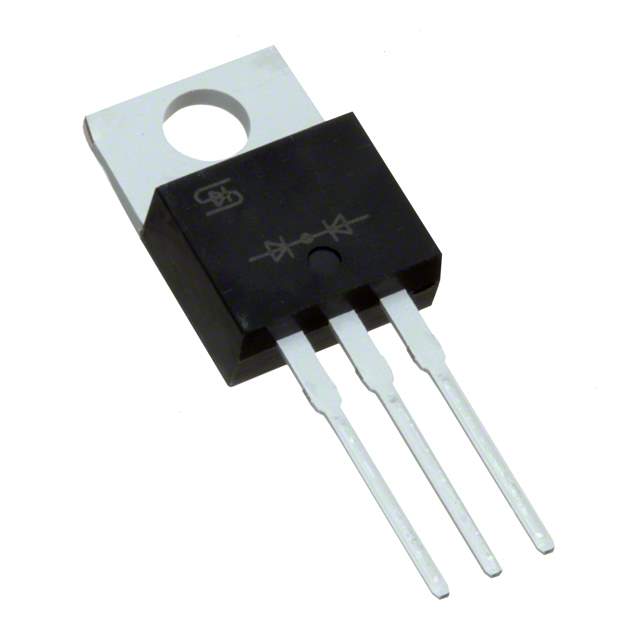

TSM100N06CZ C0G Real Image
Same model may have multiple batches, images only for reference.

TSM100N06CZ C0G

Part No TSM100N06CZ C0G
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET, SINGLE, N-CHANNEL, TRENC
Datasheet
TSM100N06CZ C0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Packaging Tube/Rail
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 92nC @ 10V
Max Input Capacitance 4382pF @ 30V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 167W (Tc)
Maximum Rds On at Id,Vgs 6.7 mOhm @ 30A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package TO-220
Dimension TO-220-3
Win Source Part Number 1114684-TSM100N06CZ C0G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TSM100N06CZ C0G CAD Model

Description

The TSM100N06CZ C0G is a MOSFET transistor manufactured by Taiwan Semiconductor.

  • Maximum Power Dissipation: 167W @ Tc
  • Mounting: Through Hole
  • Package: TO-220-3
  • Polarity: N-Channel
  • Drain-Source Breakdown Voltage: 60V
  • Continuous Drain Current: 100A (Tc) @ 25°C
  • Gate-Source Threshold Voltage: 4V @ 250μA
  • Maximum Gate Charge: 92nC @ 10V
  • Maximum Input Capacitance: 4382pF @ 30V
  • Maximum Rds on: 6.7 mOhm @ 30A, 10V
  • Supply and Demand Status: Sufficient
