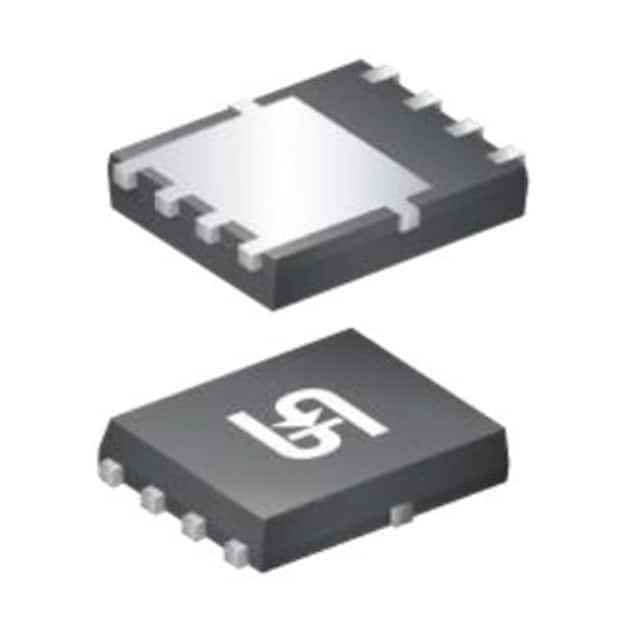

TSM120N06LCR RLG
Same model may have multiple batches, images only for reference.

TSM120N06LCR RLG

Part No TSM120N06LCR RLG
Manufacturer Taiwan Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V 54A 8PDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features N-Channel 60 V 54A (Tc) 69W (Tc) Surface Mount 8-PDFN (5x6)
Manufacturer Taiwan Semiconductor
Package Reel - TR
Part Status Not For New Designs
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 8-PowerTDFN
Case / Package 8-PDFN (5x6)
Family Name TSM120
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number TSM120N06LCR RLGTR, TSM120N06LCRRLGTR, TSM120N06LCR RLGDKR-ND, TSM120N06LCR RLGTR-ND, TSM120N06LCR RLGCT, TSM120N06LCRRLGCT, TSM120N06LCRRLGDKR, TSM120N06LCR RLGCT-ND, TSM120N06LCR RLGDKR
Quantity per package 2500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 937746-TSM120N06LCR RLG
Ultra Librarian 3D Model Ultra Librarian TSM120N06LCR RLG CAD Model

Description

It is an N-channel surface mount with a voltage rating of 60V, a current rating of 54A, and a power rating of 69W.

  • Channel Type: N-channel
  • Mounting Type: Surface Mount
  • Voltage Rating: 60V
  • Current Rating: 54A
  • Power Rating: 69W
  • Package: 8-PowerTDFN
  • Quantity per Reel: 2500
  • Supply and Demand Status: Balanced
  • For New Designs: No
  • ECCN: EAR99
