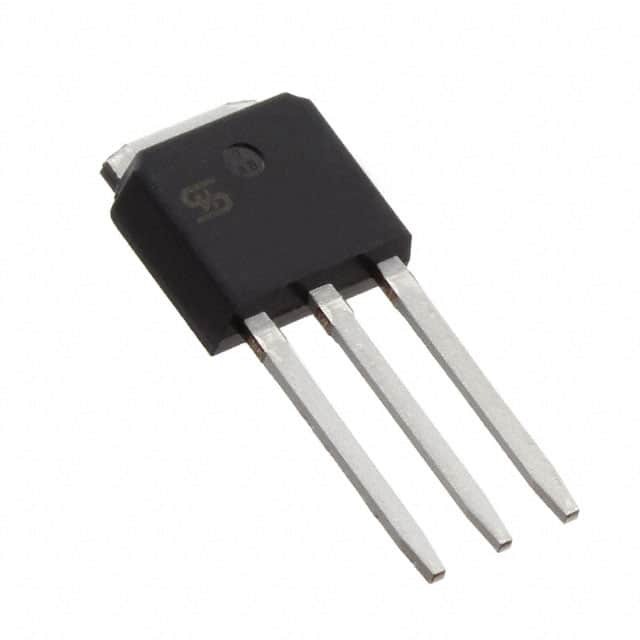

TSM2NB60CH

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM2NB60CH
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	600V, 2A, SINGLE N-CHANNEL POWER
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Taiwan Semiconductor Corporation
Series	-
Package	Tube
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.4Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.4 nC @ 10 V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	249 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	44W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251 (IPAK)
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
Base Product Number	TSM2
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1380163-TSM2NB60CH
Ultra Librarian 3D Model	Ultra Librarian TSM2NB60CH CAD Model

Alternative Products

Description

The TSM2NB60CH is a N-Channel MOSFET transistor from Taiwan Semiconductor Corporation.

Series: TSM2
Drain to Source Voltage (Vdss): 600 V
Continuous Drain Current (Id): 2A @ 25°C
On-Resistance (Rds On): 4.4 Ohm @ 1A, 10V
Gate Threshold Voltage (Vgs(th)): 4.5V @ 250μA
Gate Charge (Qg): 9.4 nC @ 10V
Power Dissipation: 44W
Package: TO-251-3 Short Leads, IPak, TO-251AA
Mounting: Through-Hole
