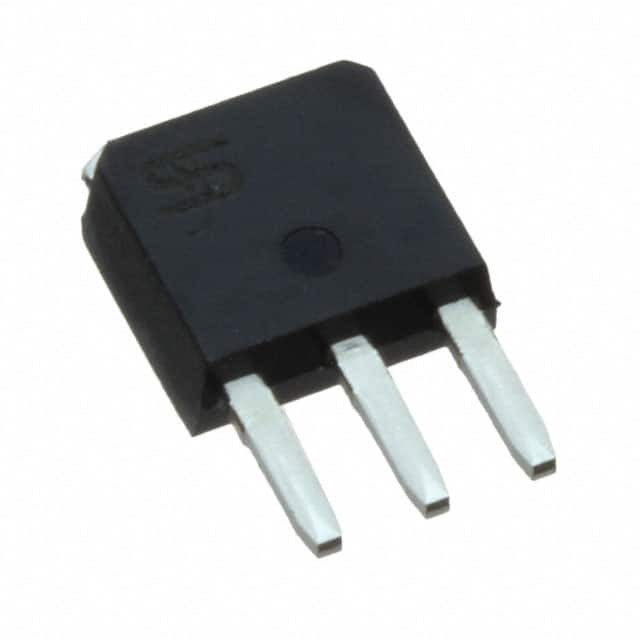

TSM480P06CH

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM480P06CH
Manufacturer	Taiwan Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	-60V, -20A, SINGLE P-CHANNEL POW
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Taiwan Semiconductor Corporation
Series	-
Package	Tube
Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	48mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	22.4 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1250 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	-
Temperature Range - Operating	-50°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251S (I-PAK SL)
Package / Case	TO-251-3 Stub Leads, IPak
Base Product Number	TSM480
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1380167-TSM480P06CH
Ultra Librarian 3D Model	Ultra Librarian TSM480P06CH CAD Model

Alternative Products

Description

The TSM480P06CH is a P-channel MOSFET transistor from Taiwan Semiconductor Corporation.

Manufacturer: Taiwan Semiconductor Corporation
FET Type: P-Channel
Technology: MOSFET (Metal Oxide)
Voltage - Drain to Source (Vdss): 60V
Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
Rds On (Max) @ Id, Vgs: 48mOhm @ 8A, 10V
Vgs(th) (Max) @ Id: 2.2V @ 250μA
Gate Charge (Qg) @ Vgs: 22.4nC @ 10V
Input Capacitance (Ciss) @ Vds: 1250pF @ 30V
Mounting Type: Through Hole
Operating Temperature: -50°C ~ 150°C (TJ)
Package / Case: TO-251-3 Stub Leads, IPak
REACH: Yes
ECCN: EAR99
