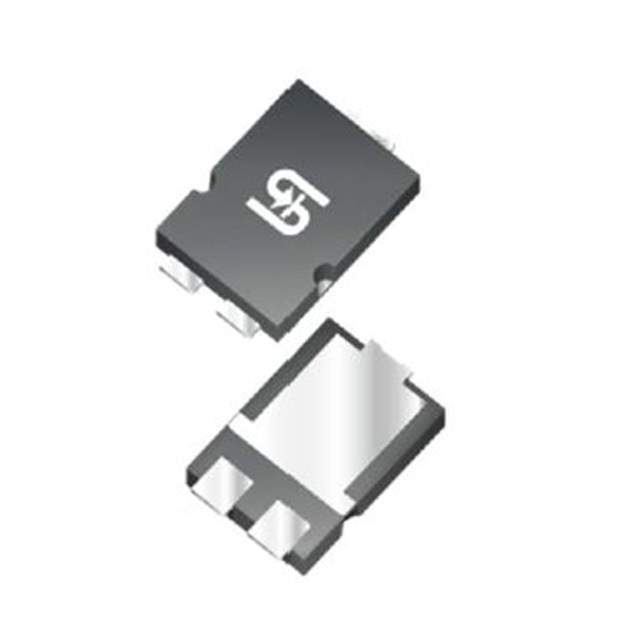

TSP10U100S S1G Real Image
Same model may have multiple batches, images only for reference.

TSP10U100S S1G

Part No TSP10U100S S1G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 10A TO277A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 13 Weeks
Features Diode Schottky 100 V 10A Surface Mount TO-277A (SMPC)
Manufacturer Taiwan Semiconductor
Package Reel - TR
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Surface Mount
Package TO-277, 3-PowerDFN
Case / Package TO-277A (SMPC)
Family Name TSP10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number TSP10U100SS1GDKR, TSP10U100S S1GCT-ND, TSP10U100S S1GDKR, TSP10U100S S1GTR-ND, TSP10U100SS1GTR, TSP10U100SS1GCT, TSP10U100S S1GCT, TSP10U100S S1GTR, TSP10U100S S1GDKR-ND
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901469-TSP10U100S S1G
Ultra Librarian 3D Model Ultra Librarian TSP10U100S S1G CAD Model

Description

The TSP10U100S S1G is a Schottky diode manufactured by Taiwan Semiconductor.

  • Product Name: TSP10U100S S1G
  • Manufacturer: Taiwan Semiconductor
  • Maximum Voltage: 100V
  • Maximum Current: 10A
  • Recovery Time: less than 500ns
  • Minimum Forward Voltage Drop: 200mA
  • Package Type: TO-277A (SMPC)
  • Mounting Type: Surface Mount
  • Family: TSP10
  • Category: Discrete Semiconductor Products
  • Package Quantity: 1500 units
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 13 weeks
