Same model may have multiple batches, images only for reference.

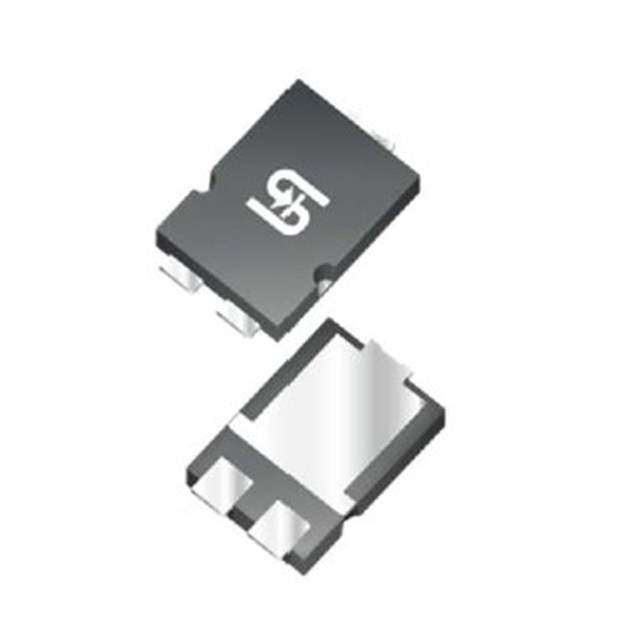

TSP10U45S S1G Real Image
Same model may have multiple batches, images only for reference.

TSP10U45S S1G

Part No TSP10U45S S1G
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE, SCHOTTKY, TRENCH, 10A, 45
Datasheet
TSP10U45S S1G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Taiwan Semiconductor
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 460mV @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 300μA @ 45V
Mounting SMD (SMT)
Case / Package TO-277A (SMPC)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1114782-TSP10U45S S1G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSP10U45S S1G CAD Model

Description

The Taiwan Semiconductor TSP10U45S S1G is a Schottky diode with a maximum reverse voltage of 45V and an average rectified current of 10A.

  • Forward Voltage: 460mV @ 10A
  • Reverse Leakage Current: 300μA @ 45V
  • Mounting: SMD (SMT) technology
  • Package: TO-277A (SMPC)
  • Operating Temperature Range: from -55°C to 150°C
  • Frequency Rating: 200mA (Io)
