Same model may have multiple batches, images only for reference.

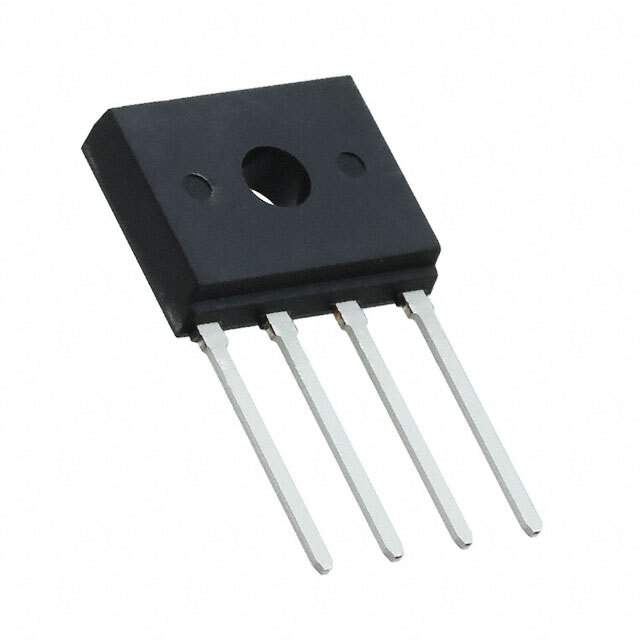

UR3KB80 C2G Real Image
Same model may have multiple batches, images only for reference.

UR3KB80 C2G

Part No UR3KB80 C2G
Manufacturer Taiwan Semiconductor
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER, STANDARD, 3A, / Rectifier Bridge Diode Single 800V 3A 4-Pin Case D3K Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer TSC America Inc.
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 2A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-ESIP
Manufacturer Package D3K
Win Source Part Number 798909-UR3KB80 C2G
Popularity Medium
Supply and Demand Status Limited
Family Name UR3KB80
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian UR3KB80 C2G CAD Model

Description

The TSC America Inc. UR3KB80 C2G is a single-phase diode with a current rating of 3A.

  • Voltage Rating: 800V
  • Forward Voltage Drop: 1V @ 2A
  • Package: 4-ESIP
  • Mounting: Through-hole
  • Reverse Leakage Current: 10μA @ 800V
  • Family: UR3KB80
  • Category: Discrete Semiconductor Products
  • Estimated EOL Date:
  • Alternative Parts: UR3KB80
