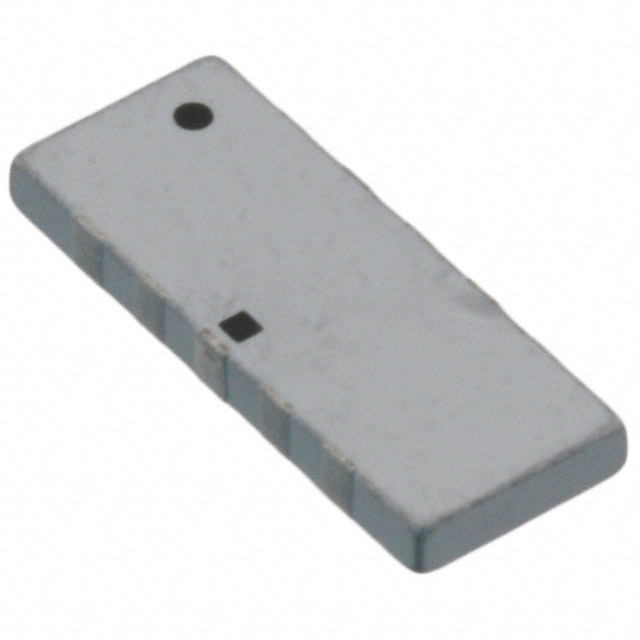

AH104N2450D1-T Taiyo Yuden
Same model may have multiple batches, images only for reference.

AH104N2450D1-T

Part No AH104N2450D1-T
Manufacturer Taiyo Yuden
Catalog RF Antennas
Description ANTENNA W-LAN 2.45/5.4GHZ / Antenna Multilayer 2500MHz SMD T/R
Datasheet
AH104N2450D1-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Taiyo Yuden
Packaging Reel package
Frequency Group UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) 2.4GHz, 5.4GHz
Frequency Range 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz
Antenna Type Chip
Number of Bands 2
VSWR 3
Gain 2.1dBi, 2.4dBi
Termination Solder
Mounting SMD
Height (Maximum) 0.039" (1.00mm)
Applications WLAN
Win Source Part Number 768356-AH104N2450D1-T
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2k pcs
Family Name AH104N2450D1
Introduction Date August 25, 2009
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian AH104N2450D1-T CAD Model

Description

This electronic component is a chip antenna that is a part of the Taiyo Yuden series.

  • Series: Taiyo Yuden
  • Frequency Range: 2.4GHz to 2.5GHz, 4.9GHz to 5.85GHz
  • Mounting: Surface Mountable
  • VSWR: 3
  • Applications: WLAN, Bluetooth
  • Gain: 2.1dBi, 2.4dBi
  • Package: 2k pcs
