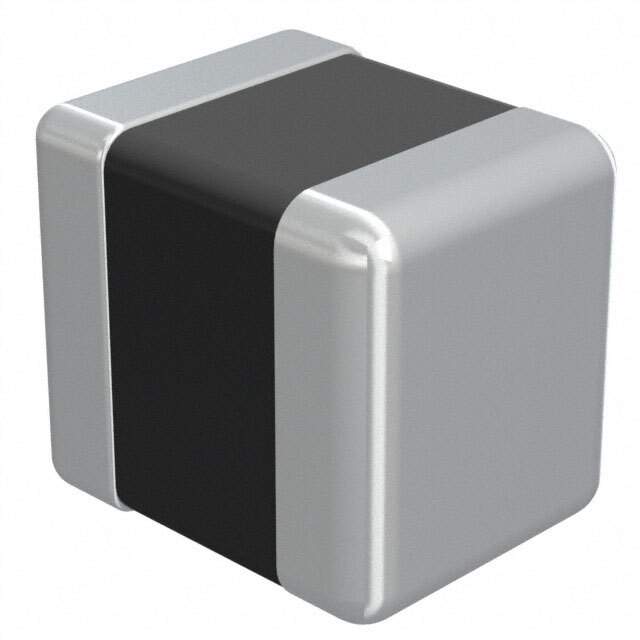

LBM2016T560J

Name: LBM2016T560J
Brand: Taiyo Yuden
SKU: 1013563
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LBM2016T560J
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 56UH 95MA 5.9 OHM SMD / 56 µH Unshielded Drum Core, Wirewound Inductor 95 mA 5.9Ohm 0806 (2016 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Taiyo Yuden
Series	LB, M Type
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	56 µH
Tolerance	±5%
Current Rating (Amps)	95 mA
Shielding	Unshielded
DC Resistance (DCR)	5.9Ohm
Q @ Freq	20 @ 2.52MHz
Frequency - Self Resonant	12MHz
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	2.52 MHz
Mounting	SMD (SMT)
Package / Case	0806 (2016 Metric)
Supplier Device Package	0806 (2016 Metric)
Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.071" (1.80mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	587-3097-6,587-3097-1,587-3097-2,LQ LBM 2016T560J
Standard Package	2,000
Win Source Part Number	1013563-LBM2016T560J
Ultra Librarian 3D Model	Ultra Librarian LBM2016T560J CAD Model

Alternative Products

Description

The Taiyo Yuden LBM2016T560J is a fixed inductor that has a drum core and wirewound type.

Shielding: Unshielded
Inductance: 56 µH
Packaging: Tape and Reel
Standard Package: 2,000
Mounting Type: Surface Mount
Tolerance: ±5%
Material Core: Ferrite
Q @ Freq: 20 @ 2.52MHz
DC Resistance (DCR): 5.9Ohm
ECCN: EAR99
Current: 95 mA
