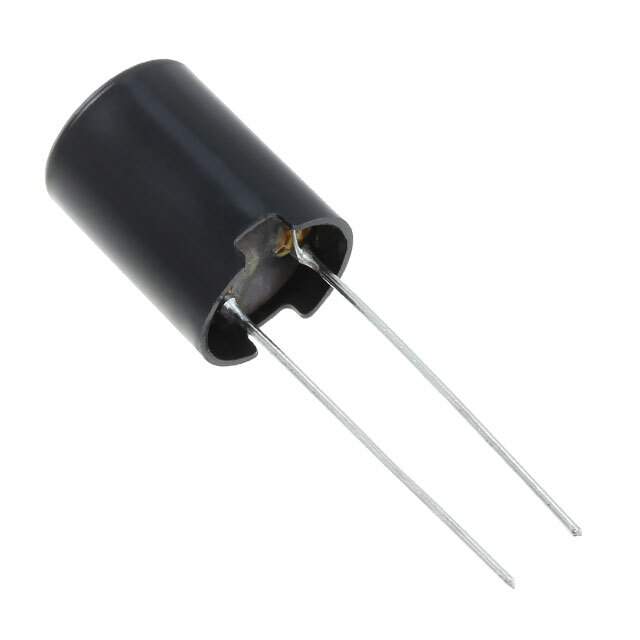

LHL10TB470K Real Image
Same model may have multiple batches, images only for reference.

LHL10TB470K

Part No LHL10TB470K
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 47UH 1.7A 93 MOHM TH / 47 µH Unshielded Inductor 1.7 A 93mOhm Max Radial, Vertical Cylinder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series LH, L Type
Package Tape & Box (TB)
Product Status Obsolete
Material - Core Ferrite
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 1.7 A
Shielding Unshielded
DC Resistance (DCR) 93mOhm Max
Q @ Freq 50 @ 2.52MHz
Frequency - Self Resonant 6.2MHz
Temperature Range - Operating -25°C ~ 105°C
Inductance Frequency - Test 2.52 MHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Dimension 0.433" Dia (11.00mm)
Height - Seated (Max) 0.551" (14.00mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.50.8000
Other Names LH LH L 10TB470K
Standard Package 500
Win Source Part Number 1131003-LHL10TB470K
Ultra Librarian 3D Model Ultra Librarian LHL10TB470K CAD Model

Description

The Taiyo Yuden 1131003-LHL10TB470K is a fixed inductor that has an inductance of 47 µH and a tolerance of ±10%.

  • Suitable for: use in various electronic devices and can be used in custom electronic circuits
  • Current Rating: 1.7 A
  • DC Resistance: 93mOhm Max
  • Package Type: radial, vertical cylinder
  • Status: Obsolete and has alternative parts available
