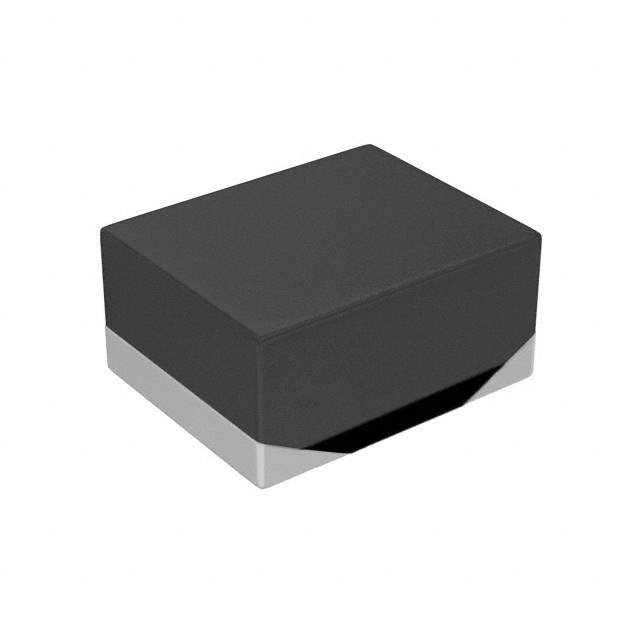

Same model may have multiple batches, images only for reference.

MAKK2520H100M

Name: MAKK2520H100M
Brand: Taiyo Yuden
SKU: 1329311
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MAKK2520H100M
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 10UH 750MA 650MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 750 mA 650mOhm Max 1008 (2520 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Taiyo Yuden
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Metal
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	750 mA
Current - Saturation (Isat)	1.25A
Shielding	Shielded
DC Resistance (DCR)	650mOhm Max
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	2 MHz
Mounting	Surface Mount
Case / Package	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.039" (1.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	LQ MAKK2520H100M,587-6048-1,587-6048-2,587-6048-6
Standard Package	3,000
Win Source Part Number	1329311-MAKK2520H100M
Ultra Librarian 3D Model	Ultra Librarian MAKK2520H100M CAD Model

Alternative Products

Description

The Taiyo Yuden MAKK2520H100M is a high-quality, wirewound, 10μH, 20% tolerance, 1008 (2520 Metric) drum core inductor.

Shielded: Yes
Height: 0.039 inches
DC Resistance: 650mOhm
Current Rating: 750mA
Type: Wirewound
Inductance: 10μH
Tolerance: 20%
Case/Package: 1008 (2520 Metric)
