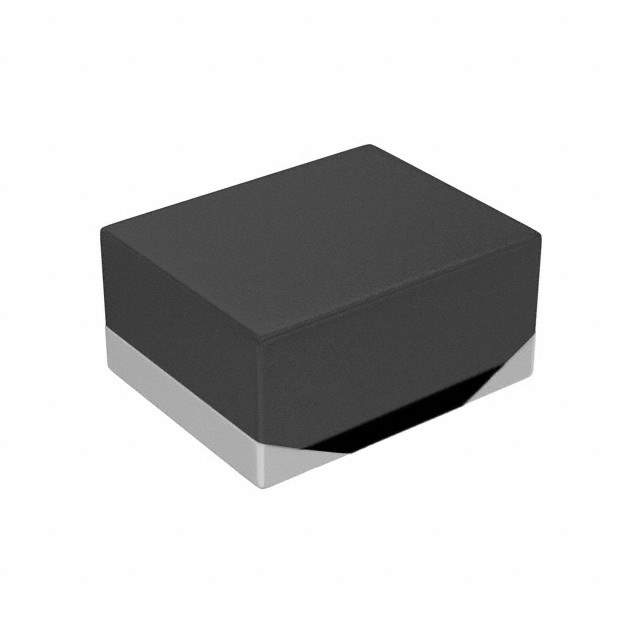

MAMK2520H1R5M Real Image
Same model may have multiple batches, images only for reference.

MAMK2520H1R5M

Part No MAMK2520H1R5M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1.5UH 2.6A 65 MOHM SMD  /  1.5 µH Shielded Drum Core, Wirewound Inductor 2.6 A 65mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Taiyo Yuden
Series MCOIL™, MA, H Type
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 3.7A
Shielding Shielded
DC Resistance (DCR) 65mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 587-4462-6,LQ MAMK2520H1R5M,587-4462-2,587-4462-1
Standard Package 3,000
Win Source Part Number 1153662-MAMK2520H1R5M
Ultra Librarian 3D Model Ultra Librarian MAMK2520H1R5M CAD Model

Description

The MCOIL™, MA, H Type series inductor is a drum core, wirewound type component that is shielded with a metal core material.

  • Series: MCOIL™, MA, H Type
  • Core Type: Drum Core, Wirewound
  • Shielded: Yes, Metal Core Material
  • Inductance: 1.5 µH
  • Tolerance: ±20%
  • Seated Height: 0.047" (1.20mm) Max
  • DC Resistance: 65mOhm Max
  • Operating Temperature Range: -40°C ~ 125°C
  • Current Rating: 2.6 A
  • Saturation Current: 3.7A
  • Package/Case: 1008 (2520 Metric)
  • Mounting Type: SMD (SMT)
  • Packaging: Tape & Reel
  • Standard Package Quantity: 3,000
  • Manufacturer: Taiyo Yuden
  • Alternative Parts: MAMK2520H1R5M
  • ECCN: EAR99 Compliant
  • MSL Level: 1 (Unlimited)
