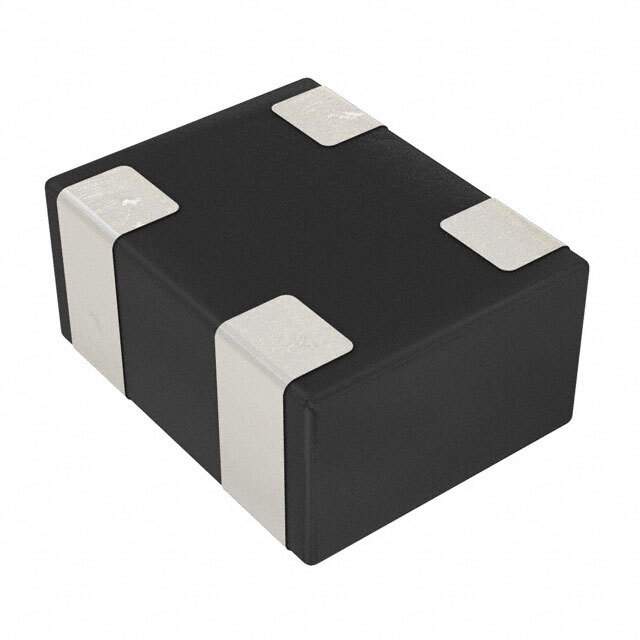

MCF08062G330-T Real Image
Same model may have multiple batches, images only for reference.

MCF08062G330-T

Part No MCF08062G330-T
Manufacturer Taiyo Yuden
Catalog Common Mode Chokes
Description CMC 100MA 2LN 33 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Not For New Designs
Filter Type Signal Line
Number of Lines 4
Impedance @ Frequency 33 Ohm @ 100MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 2.5 Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.018" (0.45mm)
Dimension 0302 (0806 Metric)
Win Source Part Number 041539-MCF08062G330-T
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian MCF08062G330-T CAD Model

Description

The Taiyo Yuden MCF08062G330-T is a signal line filter with 4 lines.

  • Voltage Rating: 5V
  • Current Rating: 100mA
  • Impedance: 33 Ohm @ 100MHz
  • Maximum DC Resistance: 2.5 Ohm
  • GPTDescription: It is mounted using SMD (SMT) technology and has a height of 0.018" (0.45mm).
  • GPTDescription: The filter is packaged in a reel - TR and is not for new designs.
  • GPTDescription: It operates in the temperature range of -40°C to 85°C.
  • GPTDescription: The package contains 10k pcs.
