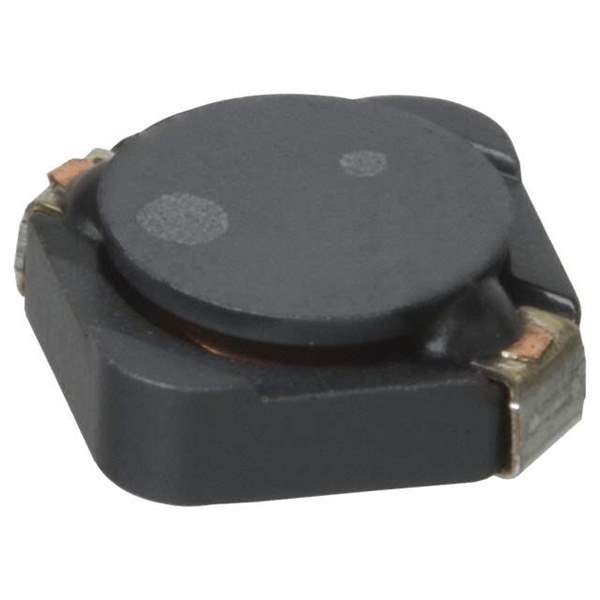

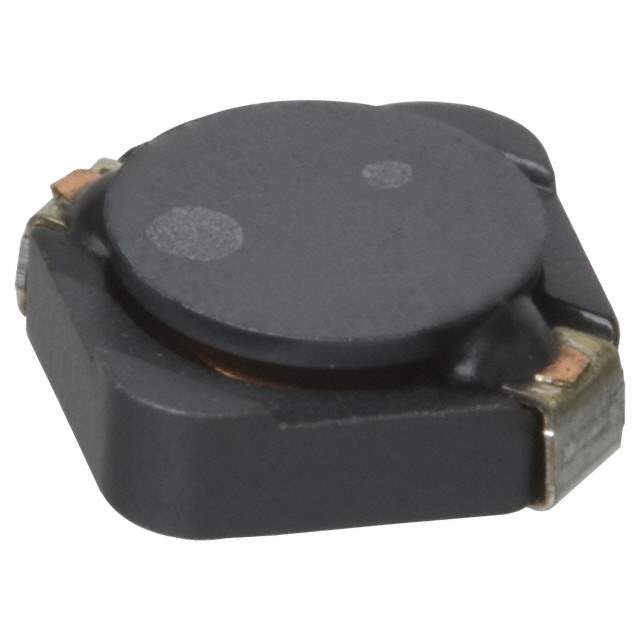

NP04SA220M

Get a Quote

Part No	NP04SA220M
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 22UH 1.5A 110 MOHM SMD
Datasheet	NP04SA220M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Packaging	Reel - TR
Status	Obsolete(EOL)
Material - Core	Ferrite
Inductance	22μH
Tolerance	±20%
Current Rating	1.5A
Current - Saturation	530mA
DC Resistance (DCR)	110 mOhm Max
Frequency - Self Resonant	13MHz
Temperature Range - Operating	-25°C to 105°C
Frequency - Test	1kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.118" (3.00mm)
Win Source Part Number	1083269-NP04SA220M
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian NP04SA220M CAD Model

Alternative Products

Description

The 1083269-NP04SA220M is a ferrite core inductor manufactured by Taiyo Yuden.

Win Source Part Number: 1083269-NP04SA220M
Category: Inductors, Coils, Chokes
Package: reel-TR package
Height-Seated (Max): 0.118" (3.00mm)
Current Rating: 1.5A
Inductance: 22μH
Mounting Style: SMD (SMT)
Tolerance: ±20%
DC Resistance (DCR): 110 mOhm Max
Saturation Current: 530mA
Self-Resonant Frequency: 13MHz
Test Frequency: 1kHz
Status: obsolete (EOL)
Temperature Range: -25°C to 105°C
Supply and Demand Status: balance
