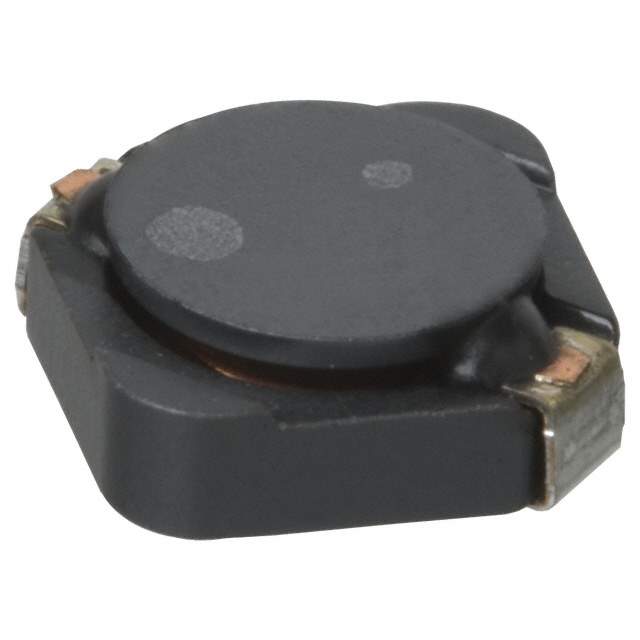

Same model may have multiple batches, images only for reference.

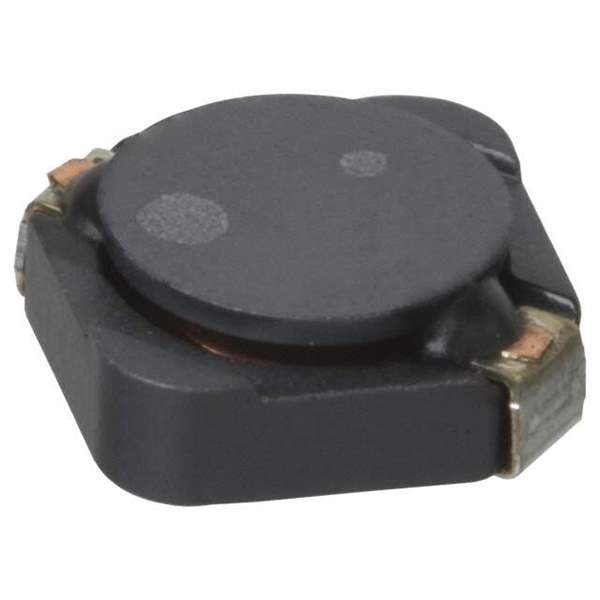

NP04SB6R8N Real Image
Same model may have multiple batches, images only for reference.

NP04SB6R8N

Part No NP04SB6R8N
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 6.8UH 2A 53 MOHM SMD
Datasheet
NP04SB6R8N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Obsolete(EOL)
Material - Core Ferrite
Inductance 6.8μH
Tolerance ±30%
Current Rating 2A
Current - Saturation 1.05A
DC Resistance (DCR) 53 mOhm Max
Frequency - Self Resonant 27MHz
Temperature Range - Operating -25°C to 105°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 045316-NP04SB6R8N
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NP04SB6R8N CAD Model

Description

The Taiyo Yuden 045316-NP04SB6R8N is a ferrite core inductor with an inductance of 6.8μH and a current rating of 2A.

  • Tolerance: +/-30%
  • DC Resistance: 53mOhm
  • Saturation Current: 1.05A
  • Temperature Range: -25C to 105C
  • Height: 0.079 inches
  • Obsolete: true and is no longer recommended for new designs
