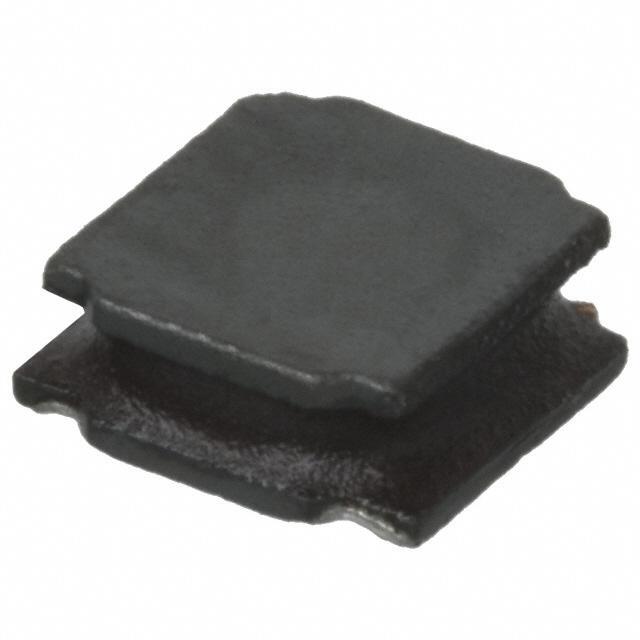

Same model may have multiple batches, images only for reference.

NR4018T100M

Name: NR4018T100M
Brand: Taiyo Yuden
SKU: 259254
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	NR4018T100M
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 10UH 840MA 216 MOHM
Datasheet	NR4018T100M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10μH
Tolerance	±20%
Current Rating	840mA
Current - Saturation	1.2A
DC Resistance (DCR)	216 mOhm Max
Frequency - Self Resonant	24MHz
Temperature Range - Operating	-25°C to 120°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.071" (1.80mm)
Win Source Part Number	025670-NR4018T100M
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Quantity per package	3,500
Ultra Librarian 3D Model	Ultra Librarian NR4018T100M CAD Model

Alternative Products

Description

The Taiyo Yuden 025670-NR4018T100M wirewound inductor is a high-quality electronic component used in various applications.

Current Rating: 840mA
Inductance: 10μH
Tolerance: ±20%
Material: Ferrite
Current Saturation: 1.2A
Frequency Self-Resonant: 24MHz
Frequency Test: 100kHz
DC Resistance (DCR): 216 mOhm Max
Temperature Range: -25°C to 120°C
Mounting: SMD (SMT)
Height-Seated Maximum: 0.071" (1.80mm)
Popularity: Popular and commonly used
