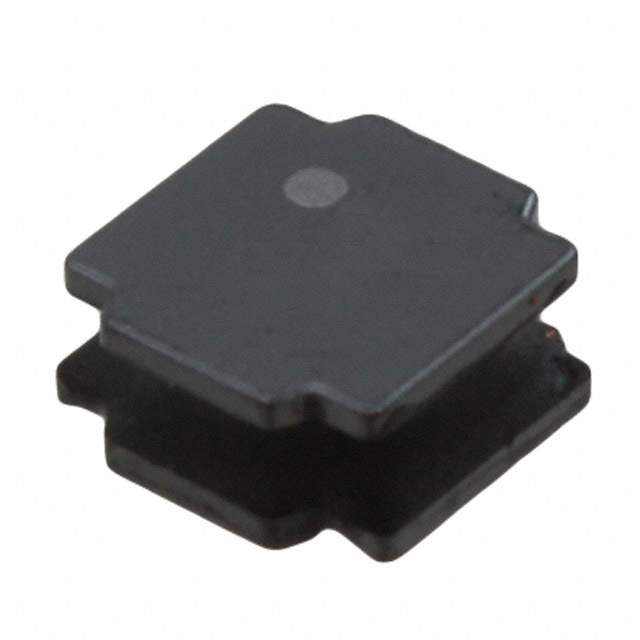

NR8040T100M Real Image
Same model may have multiple batches, images only for reference.

NR8040T100M

Part No NR8040T100M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 10UH 3.1A 44.2 MOHM
Datasheet
NR8040T100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 3.1A
Current - Saturation 3.4A
DC Resistance (DCR) 44.2 mOhm Max
Frequency - Self Resonant 22MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 004104-NR8040T100M
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian NR8040T100M CAD Model

Description

The NR8040T100M is a wirewound type inductor manufactured by Taiyo Yuden.

  • Current Rating: 3.1A
  • Inductance: 10μH
  • Height: 0.157" (4.00mm)
  • Category: Inductors, coils, chokes
  • Status: Active
  • Operating Temperature Range: -25°C to 120°C
  • Supply and Demand Status: Balanced
  • Packaging: Reel - TR
  • Quantity per Package: 1k pcs
