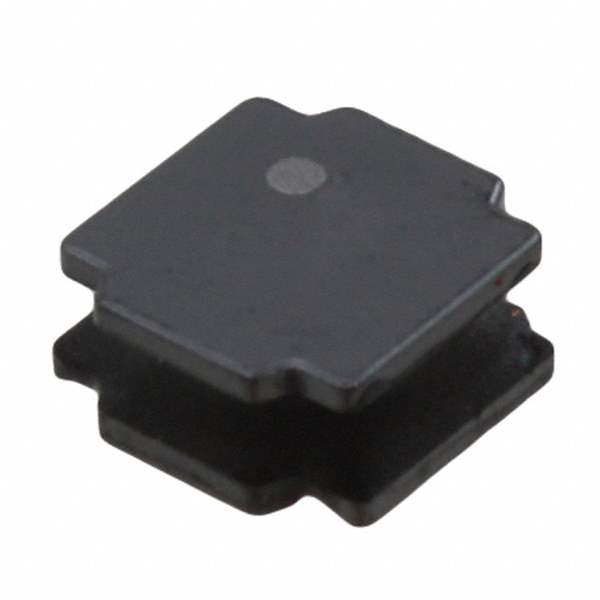

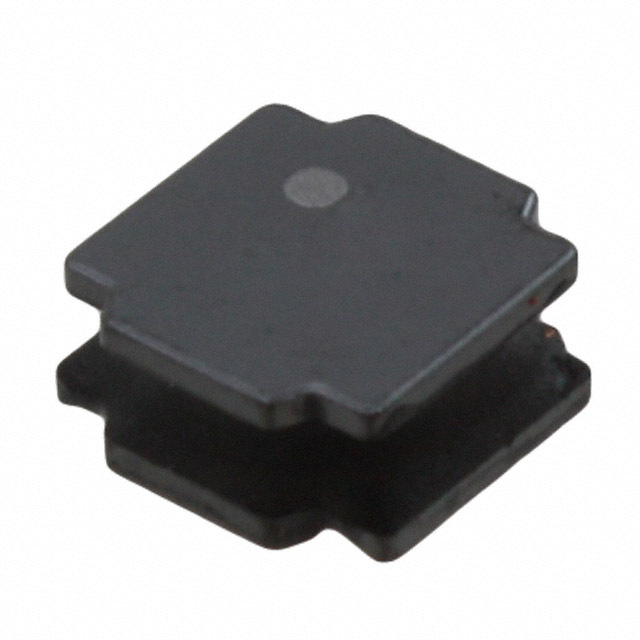

Same model may have multiple batches, images only for reference.

NR8040T150M

Name: NR8040T150M
Brand: Taiyo Yuden
SKU: 259326
Availability: InStock
Rating: 4.91 (68 reviews)

Get a Quote

Part No	NR8040T150M
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	Inductor Power Shielded Wirewound 15uH 20% 100KHz Ferrite 2.4A 0.065Ohm DCR 3131 T/R / FIXED IND 15UH 2.4A 65 MOHM SMD
Datasheet	NR8040T150M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	15μH
Tolerance	±20%
Current Rating	2.4A
Current - Saturation	2.7A
DC Resistance (DCR)	65 mOhm Max
Frequency - Self Resonant	16MHz
Temperature Range - Operating	-25°C to 120°C
Frequency - Test	100kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.157" (4.00mm)
Win Source Part Number	004105-NR8040T150M
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Quantity per package	1k pcs
Family Name	NR
Introduction Date	September 13, 2005
ECCN	EAR99
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian NR8040T150M CAD Model

Alternative Products

Description

The Taiyo Yuden 004105-NR8040T150M is a wirewound type inductor that is widely used in various electronic devices.

Current Rating: 2.4A
Inductance: 15μH
Height: 0.157" (4.00mm)
Mounting Type: SMD (SMT)
Tolerance: ±20%
Core Material: Ferrite
DC Resistance (DCR): 65 mOhm Max
Temperature Range: -25°C to 120°C
Popularity: High
Demand and Supply Status: Balanced
