Same model may have multiple batches, images only for reference.

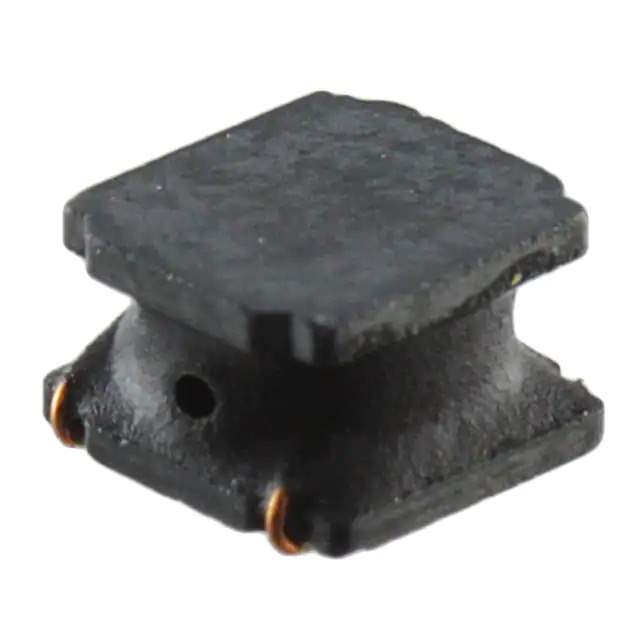

NRG4026T220M Real Image
Same model may have multiple batches, images only for reference.

NRG4026T220M

Part No NRG4026T220M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 900MA 165MOHM SMD / 22 μH Shielded Drum Core, Wirewound Inductor 900 mA 165mOhm Nonstandard
Datasheet
NRG4026T220M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR, G Type
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 900 mA
Current - Saturation (Isat) 610mA
Shielding Shielded
DC Resistance (DCR) 165mOhm
Frequency - Self Resonant 13MHz
Temperature Range - Operating -25°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.102" (2.60mm)
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 923452-NRG4026T220M
Ultra Librarian 3D Model Ultra Librarian NRG4026T220M CAD Model

Description

The 923452-NRG4026T220M is a fixed inductor from Taiyo Yuden's NR, G Type series.

  • Manufacturer: Taiyo Yuden
  • Product Name: 923452-NRG4026T220M
  • Series: NR, G Type
  • Core Type: Drum core, wirewound
  • Shielding: Yes
  • Inductance: 22 µH
  • Tolerance: ±20%
  • Material: Ferrite
  • DC Resistance (DCR): 165mOhm
  • Package Size: Nonstandard, 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Mounting: Surface mountable
  • Package: Tape & reel
  • Standard Package: 2,000 pcs
  • Suitable Applications: Various electronic applications where high inductance and compact size are required
