Same model may have multiple batches, images only for reference.

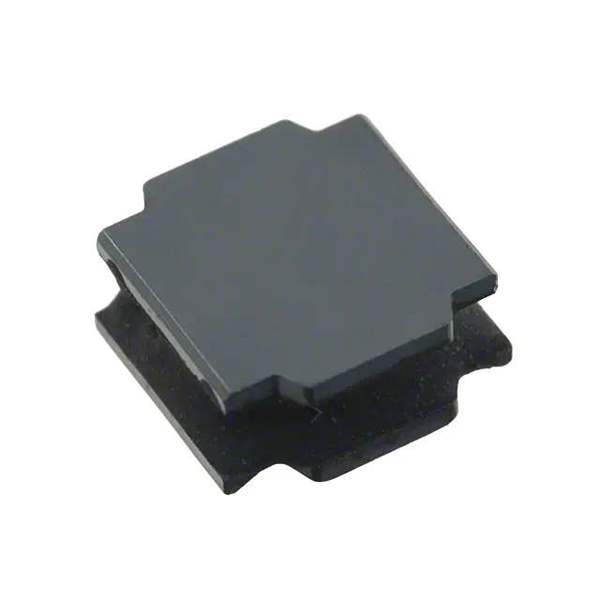

NRS6012T470MMGJ Real Image
Same model may have multiple batches, images only for reference.

NRS6012T470MMGJ

Part No NRS6012T470MMGJ
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 47UH 460MA 1.158OHM SM
Datasheet
NRS6012T470MMGJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NR, S Type
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 460 mA
Current - Saturation (Isat) 520mA
Shielding Shielded
DC Resistance (DCR) 1.158Ohm Max
Frequency - Self Resonant 6MHz
Temperature Range - Operating -25°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 649445-NRS6012T470MMGJ
Ultra Librarian 3D Model Ultra Librarian NRS6012T470MMGJ CAD Model

Description

The NRS6012T470MMGJ is a fixed inductor from Taiyo Yuden's NR, S Type series.

  • Type: Drum Core, Wirewound
  • Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Inductance: 47 μH
  • Tolerance: ±20%
  • Shielded: Yes
  • Package: Tape & Reel
  • Height: 0.047" (1.20mm)
  • Standard Package: 1,000 pcs
  • Operating Temperature: -25°C to 125°C
  • DC Resistance: 1.158Ohm max
  • Current Rating: 460 mA
  • Status: Not Recommended for New Designs
