Same model may have multiple batches, images only for reference.

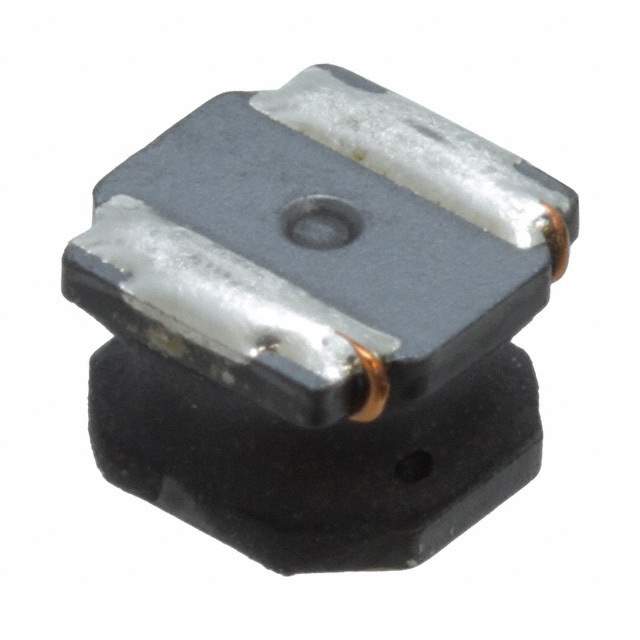

NRS6045T6R3MMGKV Real Image
Same model may have multiple batches, images only for reference.

NRS6045T6R3MMGKV

Part No NRS6045T6R3MMGKV
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 6.3UH 3A 46.8 MOHM SMD / 6.3 µH Shielded Drum Core, Wirewound Inductor 3 A 46.8mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Taiyo Yuden
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 6.3 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 3.6A
Shielding Shielded
DC Resistance (DCR) 46.8mOhm Max
Frequency - Self Resonant 15MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.177" (4.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 587-6115-6,NRS6045T6R3MMGKV-ND,587-6115-2,LM NRS6045T 6R3MMGKV,587-6115-1
Standard Package 1,500
Win Source Part Number 1327505-NRS6045T6R3MMGKV
Ultra Librarian 3D Model Ultra Librarian NRS6045T6R3MMGKV CAD Model

Description

The Taiyo Yuden 1327505-NRS6045T6R3MMGKV is a drum core, wirewound, shielded inductor, coil, choke with a size/dimension of 0.236" L x 0.236" W (6.00mm x 6.00mm) and an inductance of 6.3 μH.

  • Type: Drum core, wirewound, shielded
  • Size/Dimension: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Inductance: 6.3 μH
  • Maximum Seated Height: 0.177" (4.50mm)
  • Tolerance: ±20%
  • AEC-Q200 Ratings: Yes
  • Core Material: Ferrite
  • Current Rating: 3 A
  • DC Resistance (DCR): 46.8mOhm Max
