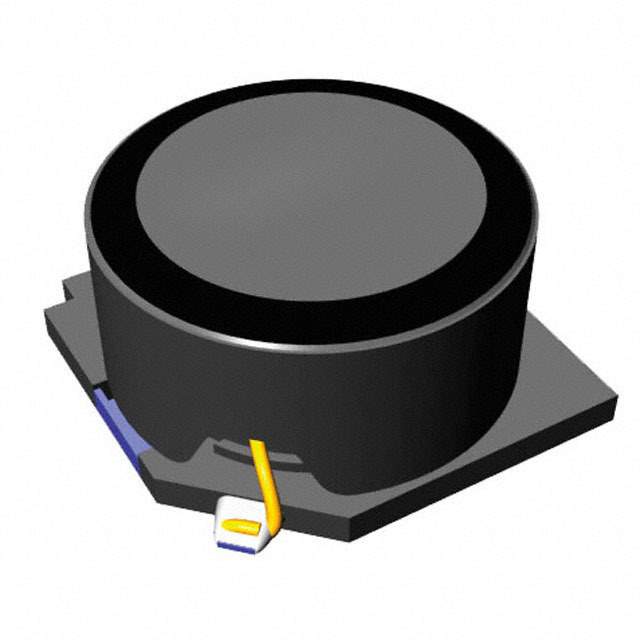

NS12565T100MNV

Name: NS12565T100MNV
Brand: Taiyo Yuden
SKU: 790813
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NS12565T100MNV
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 10UH 4.75A 23.88 MOHM / Inductor Power Shielded Wirewound 10uH 20% 100KHz 4.75A 0.02388Ohm DCR Automotive T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Taiyo Yuden
Series	NS
Packaging	Reel package
Type	Wirewound
Material - Core	Ferrite
Inductance	10μH
Tolerance	±20%
Current Rating	4.75A
Current - Saturation	6A
Shielding	Shielded
DC Resistance (DCR)	23.88 mOhm Max
Frequency - Self Resonant	15.8MHz
Ratings	AEC-Q200
Operating Temperature Range	-40°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Maximum)	0.270" (6.85mm)
Win Source Part Number	790813-NS12565T100MNV
Popularity	Medium
Supply and Demand Status	Balance
Quantity per package	500
Family Name	NS
ECCN	EAR99
Estimated EOL Date	2029
Ultra Librarian 3D Model	Ultra Librarian NS12565T100MNV CAD Model

Alternative Products

Description

The Taiyo Yuden NS12565T100MNV is a wirewound type inductor that is shielded and operates between -40°C to 125°C.

Inductance: 10μH
Current Rating: 4.75A
Mounting Type: Surface Mount
Tolerance: ±20%
Material: Ferrite
Current Saturation: 6A
Self-Resonant Frequency: 15.8MHz
AEC-Q200 Rated: Yes
Series: NS
DCR: 23.88mOhm max
Dimension: 0.492 inches L x 0.492 inches W (12.50mm x 12.50mm)
Seated Height: 0.270 inches (6.85mm)
REACH: Unaffected
ECCN: EAR99
