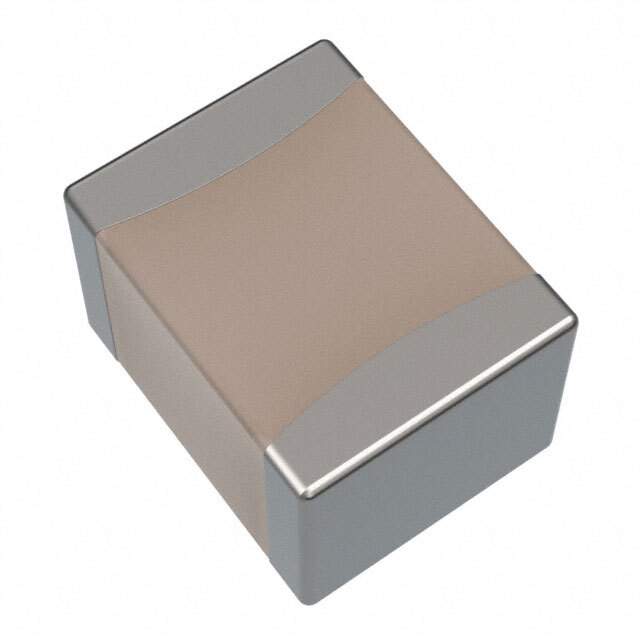

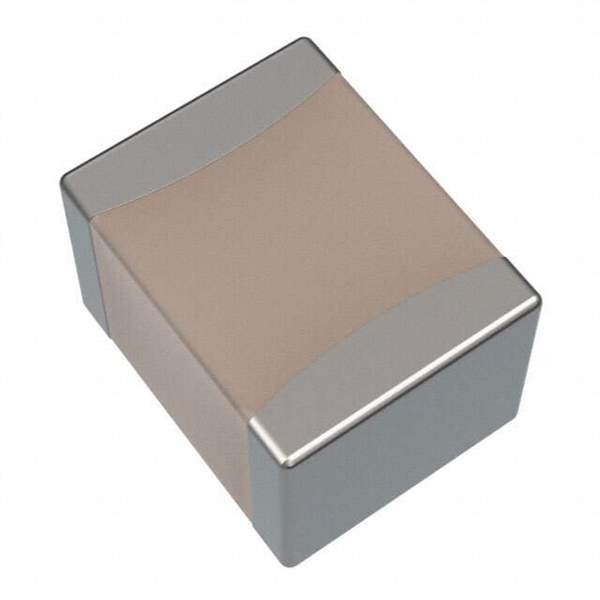

TMF325B7224MNHT Real Image1 TMF325B7224MNHT Real Image2
Same model may have multiple batches, images only for reference.
TMF325B7224MNHT Real Image1 TMF325B7224MNHT Real Image2
TMF325B7224MNHT Real Image1 TMF325B7224MNHT Real Image2
Same model may have multiple batches, images only for reference.

TMF325B7224MNHT

Part No TMF325B7224MNHT
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description CAP CER 0.22UF 25V X7R 1210 / 0.22 µF ±20% 25V Ceramic Capacitor X7R 1210 (3225 Metric)
Datasheet
TMF325B7224MNHT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Taiyo Yuden
Series M
Package Tape & Reel (TR)
Product Status Not For New Designs
Capacitance 0.22 µF
Tolerance ±20%
Voltage - Rated 25V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features -
Ratings AEC-Q200
Applications Automotive, SMPS Filtering
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 1210 (3225 Metric)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) -
Thickness (Max) 0.083" (2.10mm)
Lead Spacing -
Lead Style -
Base Product Number TMF325B
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 2,000 pcs
Win Source Part Number 1383660-TMF325B7224MNHT
Ultra Librarian 3D Model Ultra Librarian TMF325B7224MNHT CAD Model

Description

The TMF325B7224MNHT is a ceramic capacitor from Taiyo Yuden's M series.

  • Designed for: automotive and SMPS filtering applications
  • Capacitance: 0.22µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Mounting Type: Surface Mountable
  • Package/Case: 1210 (3225 Metric)
  • Operating Temperature: -55°C to 125°C
  • Compliance: AEC-Q200 automotive standard
  • Manufacturer: Taiyo Yuden
