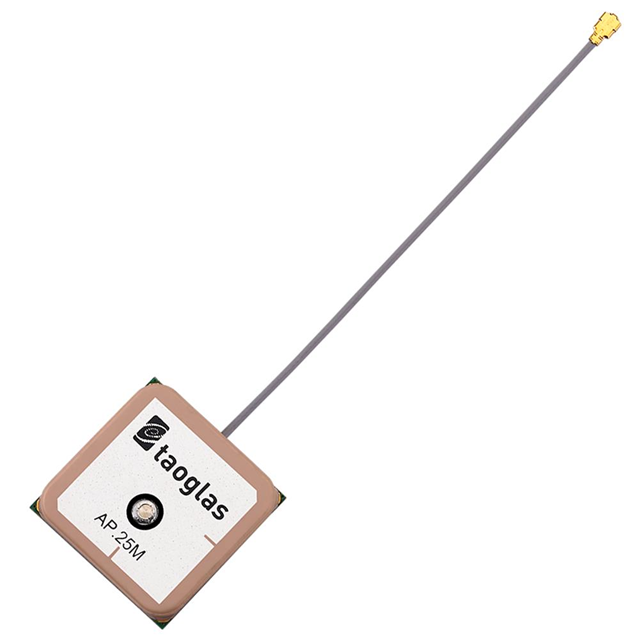

AP.25F.07.0078A Taoglas Limited – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AP.25F.07.0078A

Part No AP.25F.07.0078A
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.575GHZ CER PATCH CAB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and WirelessRF Antennas
Manufacturer Taoglas Limited
Packaging Tray
Part Status Active
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz
Frequency Range 1.574GHz ~ 1.576GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 2
Gain 2dBic
Features Cable - 80mm, LNA, Filter
Termination U.FL (UMCC), I-PEX MHF1
Mounting Type Surface Mount
Height (Max) 0.327" (8.30mm)
Applications GPS
Base Product Number AP.25
Ultra Librarian 3D Model Ultra Librarian AP.25F.07.0078A CAD Model
