Same model may have multiple batches, images only for reference.

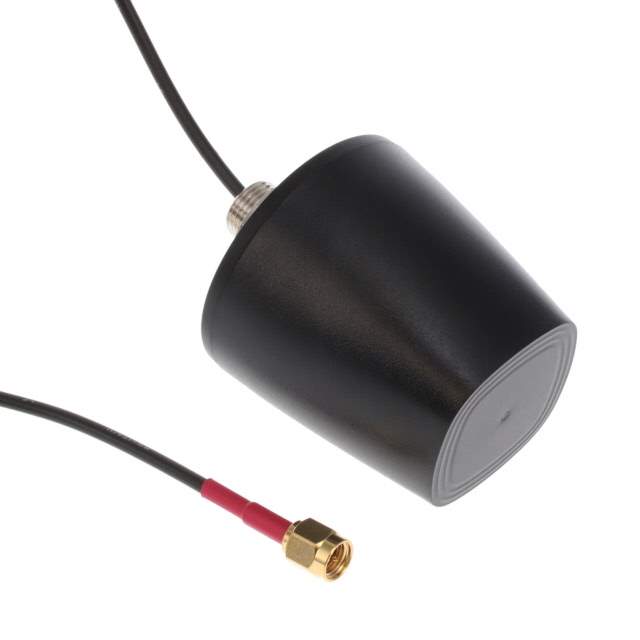

G45.A.201111 Real Image
Same model may have multiple batches, images only for reference.

G45.A.201111

Part No G45.A.201111
Manufacturer Taoglas Limited
Catalog RF Antennas
Description 5G-4G ANT WITH 2M RG-174 & SMA / 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 3.75GHz 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA Dome RF Antenna 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz 1.3dBi, 0.6dBi, 1.4dBi, -0.8dBi, 1.5dBi, 1dBi, -1.3dBi SMA Male Panel Mount
Datasheet
G45.A.201111 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Series Olympian II
Package Bag
RF Family/Standard Cellular
Frequency Group Wide Band
Frequency (Center/Band) 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 3.75GHz
Frequency Range 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz
Antenna Type Dome
Number of Bands 7
Gain 1.3dBi, 0.6dBi, 1.4dBi, -0.8dBi, 1.5dBi, 1dBi, -1.3dBi
Power - Max 2 W
Features Cable - 2m
Termination SMA Male
Ingress Protection IP67
Mounting Type Panel Mount
Height (Max) 1.909" (48.50mm)
Applications 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names 931-G45.A.201111
Standard Package 1
Win Source Part Number 1199160-G45.A.201111
Ultra Librarian 3D Model Ultra Librarian G45.A.201111 CAD Model

Description

The Olympian II G45.A.201111 is an RF antenna designed for use in 3G, 4G, 5G, HSPA, HSPA+, LTE, and WCDMA applications.

  • Cable Length: 2m
  • Termination: SMA Male
  • Package: Bag
  • Ingress Protection: IP67
  • Maximum Power: 2 W
  • Frequency Range: 617MHz to 698MHz, 698MHz to 806MHz, 824MHz to 960MHz, 1.427GHz to 1.518GHz, 1.71GHz to 2.2GHz, 2.3GHz to 2.69GHz, and 3.3GHz to 4.2GHz
  • Series: Olympian II
  • Manufacturer: Taoglas Limited
  • Mounting: Panel
  • Height: 1.909" (48.50mm)
  • Type: Wide Band Dome
  • Bands: 7
  • Gain: -1.3dBi to 1.5dBi
  • ECCN: EAR99
  • REACH: Unaffected
