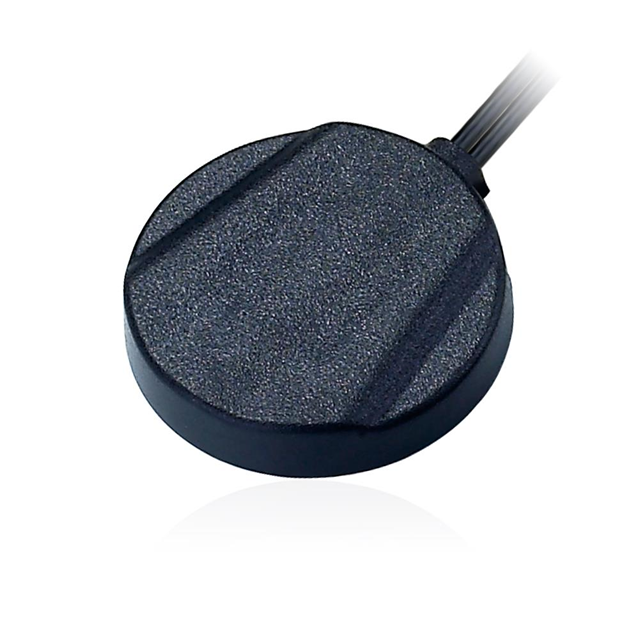

MA203.A.AB.035 Real Image
Same model may have multiple batches, images only for reference.

MA203.A.AB.035

Part No MA203.A.AB.035
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 850MHZ/900MHZ MOD SMA ADH / 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, UMTS Module RF Antenna 800MHz ~ 2.2GHz 30dB SMA Male (2) Adhesive
Datasheet
MA203.A.AB.035 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Series Stingray
Package Bulk
RF Family/Standard Cellular, Navigation
Frequency Group Wide Band
Frequency (Center/Band) 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz
Frequency Range 800MHz ~ 2.2GHz
Antenna Type Module
Number of Bands 5
VSWR 2, 2.5
Gain 30dB
Features Cable - 3m, LNA
Termination SMA Male (2)
Ingress Protection IP65
Mounting Type Adhesive
Height (Max) 0.425" (10.80mm)
Applications CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, UMTS
Base Product Number MA203
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
Other Names 931-1091,2266-MA203.A.AB.035,MA.203.A.A301111.B301111,MA.203.A.AB.035,MA203AA301111B301111
Standard Package 10
Win Source Part Number 1229337-MA203.A.AB.035
Ultra Librarian 3D Model Ultra Librarian MA203.A.AB.035 CAD Model

Description

The Stingray MA203.A.AB.035 is a module antenna designed for CDMA, DCS, EDGE, GPRS, GPS, GSM, HSPA, PCS, and UMTS applications.

  • Frequency Range: 800MHz to 2.2GHz
  • Type: Wide-Band, Five Bands
  • Gain: 30dB
  • VSWR: 2 and 2.5
  • Cable: 3m
  • Termination: SMA Male (Two)
  • Ingress Protection: IP65
  • Mounting: Adhesive
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
