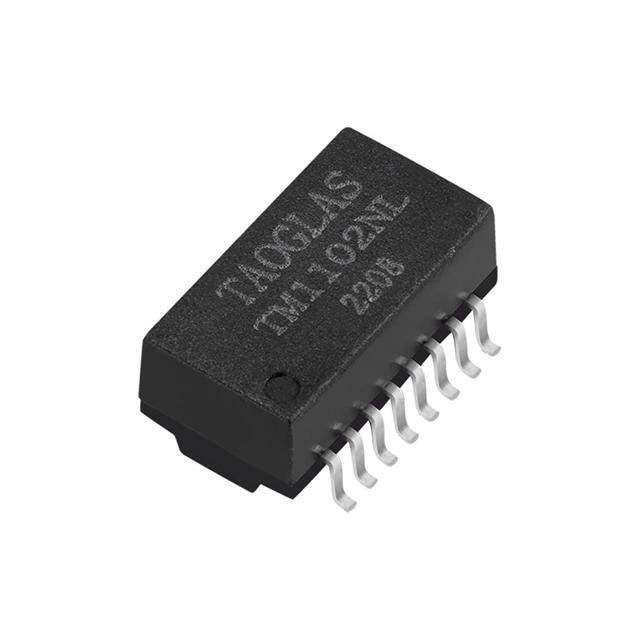

TM1102NL Real Image
Same model may have multiple batches, images only for reference.

TM1102NL

Part No TM1102NL
Manufacturer Taoglas Limited
Catalog Pulse Transformers
Description LAN XFMR 10/100 BASE-T SINGLE / 350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
TM1102NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Taoglas Limited
Series Exos
Package Tray
Transformer Type LAN 10/100 Base-T
Inductance 350µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.506" L x 0.272" W (12.85mm x 6.90mm)
Height - Seated (Max) 0.226" (5.75mm)
Temperature Range - Operating 0°C ~ 70°C
Weight -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
Standard Package 750 pcs
Win Source Part Number 1383647-TM1102NL
Ultra Librarian 3D Model Ultra Librarian TM1102NL CAD Model

Description

The Exos series transformer, with Win Source Part Number 1383647-TM1102NL, is a pulse transformer designed for LAN 10/100 Base-T applications.

  • Manufacturer: Taoglas Limited
  • Size: 0.506" L x 0.272" W (12.85mm x 6.90mm)
  • Height: 0.226" (5.75mm)
  • Inductance: 350μH
  • Mounting: Surface mountable
  • Operating Temperature: 0°C to 70°C
  • REACH Regulations: Unaffected
  • Package Quantity: 750 pcs
