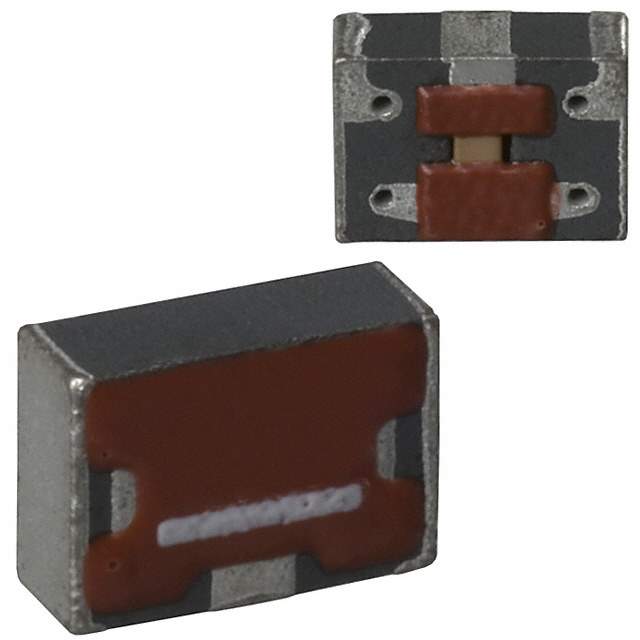

ACF451832-222-TD01 Real Image
Same model may have multiple batches, images only for reference.

ACF451832-222-TD01

Part No ACF451832-222-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACF451832-222-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 40MHz to 110MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height 0.079" (2.00mm)
Win Source Part Number 1011590-ACF451832-222-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACF451832-222-TD01 CAD Model

Description

The TDK Corporation ACF451832-222-TD01 is a low pass filter designed for data lines in mobile devices.

  • Voltage Rating: 50V
  • Current: 300mA
  • Attenuation: 25dB @ 40MHz to 110MHz
  • Filter Order: 3rd
  • Resistance - Channel (Ohms): 0.15
  • Temperature Range: -25°C to 85°C
  • Dimension: 0.177" L x 0.126" W (4.50mm x 3.20mm)
