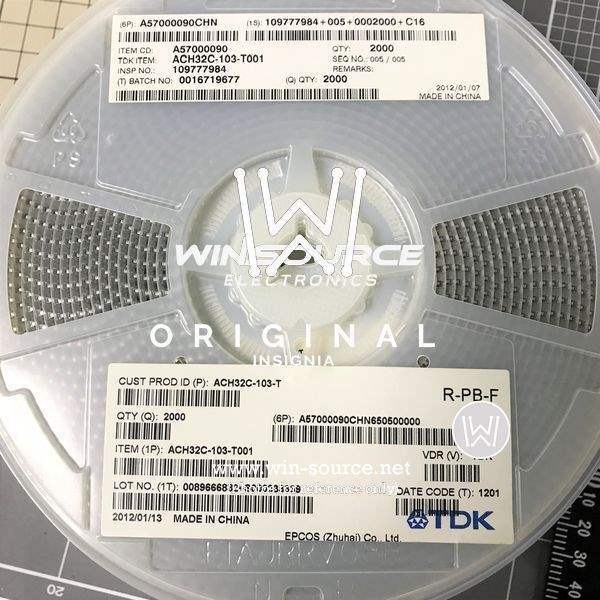

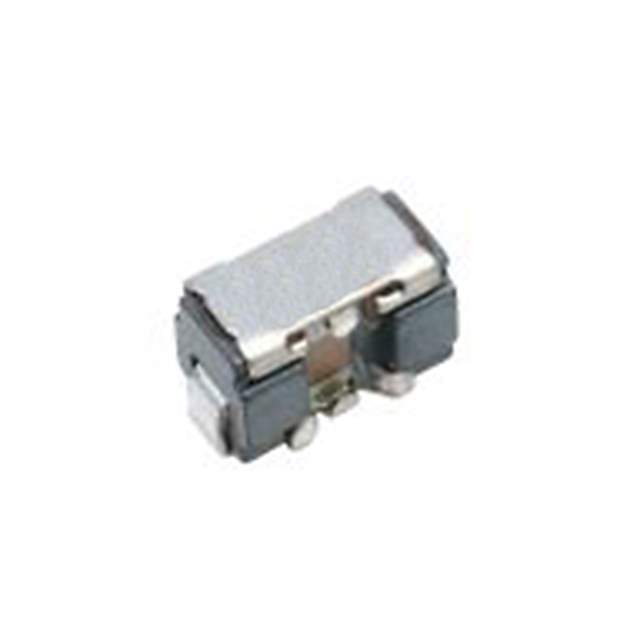

ACH32C-103-T001

Part No ACH32C-103-T001
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 0.01UF SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value -25dB @ 30MHz to 200MHz
Resistance - Channel (Ohms) 0.002
Current 6A
Values C = 10000pF
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.091" (2.30mm)
Win Source Part Number 198480-ACH32C-103-T001
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ACH
Introduction Date July 26, 2001
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date Obsolete
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian ACH32C-103-T001 CAD Model

Description

ACH32C-103-T001 Description

The ACH32C-103-T001 is an advanced electronic component designed for high-performance applications. It offers exceptional reliability and versatility, making it a preferred choice for engineers looking to innovate in modern technology environments.

  • Features and Benefits:
  • Optimized for high-speed operations
  • Enhanced reliability for long-term use
  • Broad temperature range for diverse operational conditions
  • Low power consumption
  • Applications and Projects:
  • Industrial automation systems
  • Medical equipment
  • Telecom infrastructure
  • Renewable energy systems

Additional Details: Featuring state-of-the-art material composition, the ACH32C-103-T001 ensures minimal electromagnetic interference, making it ideal for sensitive electronic environments.
