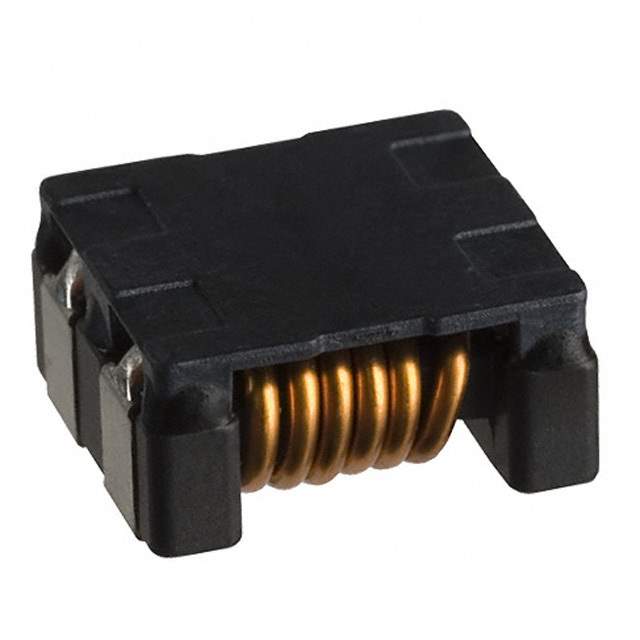

ACM1211-701 Real Image
Same model may have multiple batches, images only for reference.

ACM1211-701

Part No ACM1211-701
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 8A 2LN 700 OHM SMD
Datasheet
ACM1211-701 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 700 Ohm @ 100MHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 6 mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.236" (6.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 089939-ACM1211-701
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM1211-701 CAD Model

Description

Product Overview

The ACM1211-701 is a high-quality component integrating the latest technological advances to support complex electronic applications. Its sophisticated design caters to both simple and intricate setups.

Features and Benefits

  • Enhanced Reliability: Offers superior reliability with advanced technology.
  • Versatile Application: Fits a wide range of electronic devices and systems.
  • Sophisticated Components: Built from top-tier materials and parts.
  • Easy Maintenance: Designed to simplify servicing and upgrades.

Applications

  • Control Systems
  • Instrumentation
  • RF Devices
  • Aerospace Electronics

Additional Details

The ACM1211-701 supports sophisticated circuitry with its innovative design, ensuring seamless integration into modern electronic solutions where precision and reliability are crucial.
