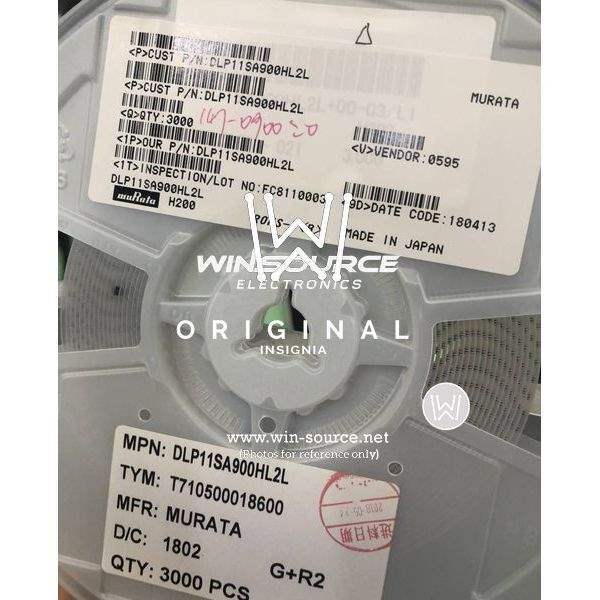

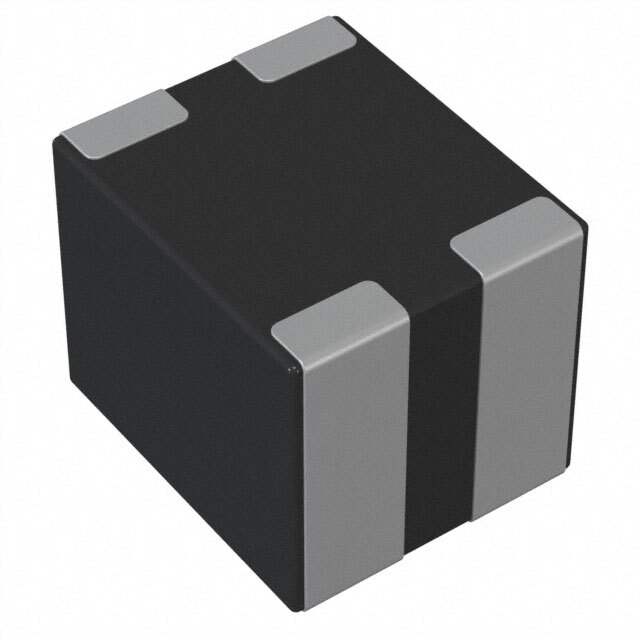

DLP11SA900HL2L

Part No DLP11SA900HL2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 150MA 2LN 90 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 150mA
DC Resistance (DCR) (Max) 1.75 Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.036" (0.92mm)
Dimension 0504 (1210 Metric), 4 Lead
Win Source Part Number 000720-DLP11SA900HL2L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DLP11SA900HL2L CAD Model

Description

Product Overview

The DLP11SA900HL2L offers high-level EMI suppression for advanced electronic applications, ensuring noise-free operation in a variety of environments.

  • Applications:
    • Networking equipment
    • Automated test equipment (ATE)
    • IoT devices and systems
  • Features and Benefits:
    • High-frequency noise elimination for clear signal processing
    • Durable construction for long-term reliability
    • Flexible design compatible with various electronic setups
  • Additional Details:

    This filter is engineered for environments demanding high signal integrity, supporting the performance of critical operations and systems.
