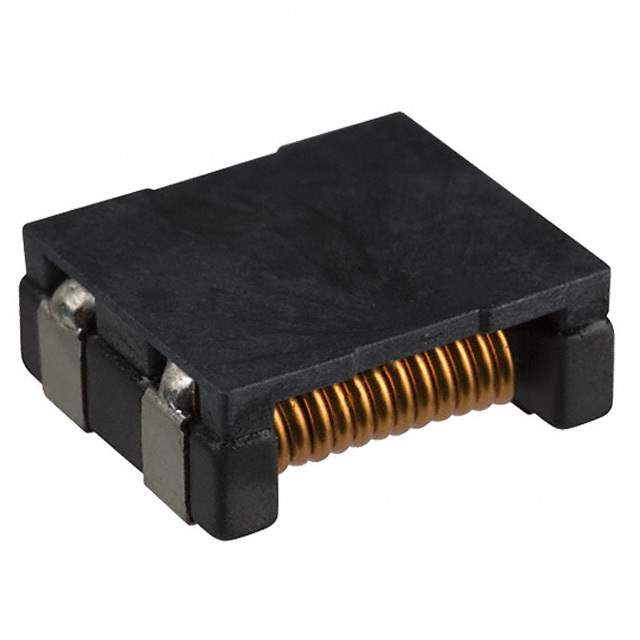

ACM1513-551-2PL-TL

Part No ACM1513-551-2PL-TL
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 10A 2LN 550 OHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 550 Ohm @ 100MHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 4 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.236" (6.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 087897-ACM1513-551-2PL-TL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM1513-551-2PL-TL CAD Model

Description

Product Description

The ACM1513-551-2PL-TL is a robust electronic component well-suited for high-stress environments, providing stability and efficiency in a compact form.

Features and Benefits

  • Robust Performance: Suitable for high-demand applications.
  • Compact Footprint: Ideal for designs where space is at a premium.
  • Thermal Management: Integrated technology for efficient heat dissipation.

Applications

  • Telecommunications
  • Power Management Systems
  • LED Lighting Controls

Additional Details

Engineered for compatibility with a wide range of other electronic components, ensuring streamlined integration and implementation.
