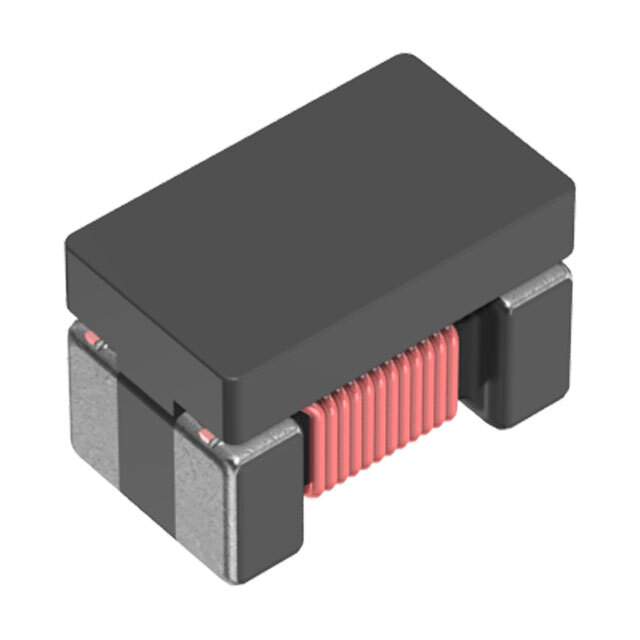

ACM2012D-900-2P-T00 Real Image
Same model may have multiple batches, images only for reference.

ACM2012D-900-2P-T00

Part No ACM2012D-900-2P-T00
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 300MA 2LN 90 OHM SMD
Datasheet
ACM2012D-900-2P-T00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 300 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 007849-ACM2012D-900-2P-T00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM2012D-900-2P-T00 CAD Model

Description

The ACM2012D-900-2P-T00 offers excellent performance in various electronic applications. Its innovative design and engineering offer a perfect balance of size and power.

Features and Benefits

  • Exceptional power handling capabilities.
  • Optimized for reducing electromagnetic interference.
  • Reliable performance in demanding environments.

Applications

  • Wireless communication devices
  • Medical equipment
  • Automotive electronics

With the ACM2012D-900-2P-T00, designers can ensure their projects deliver reliability and efficiency, crucial for both everyday and niche applications.
